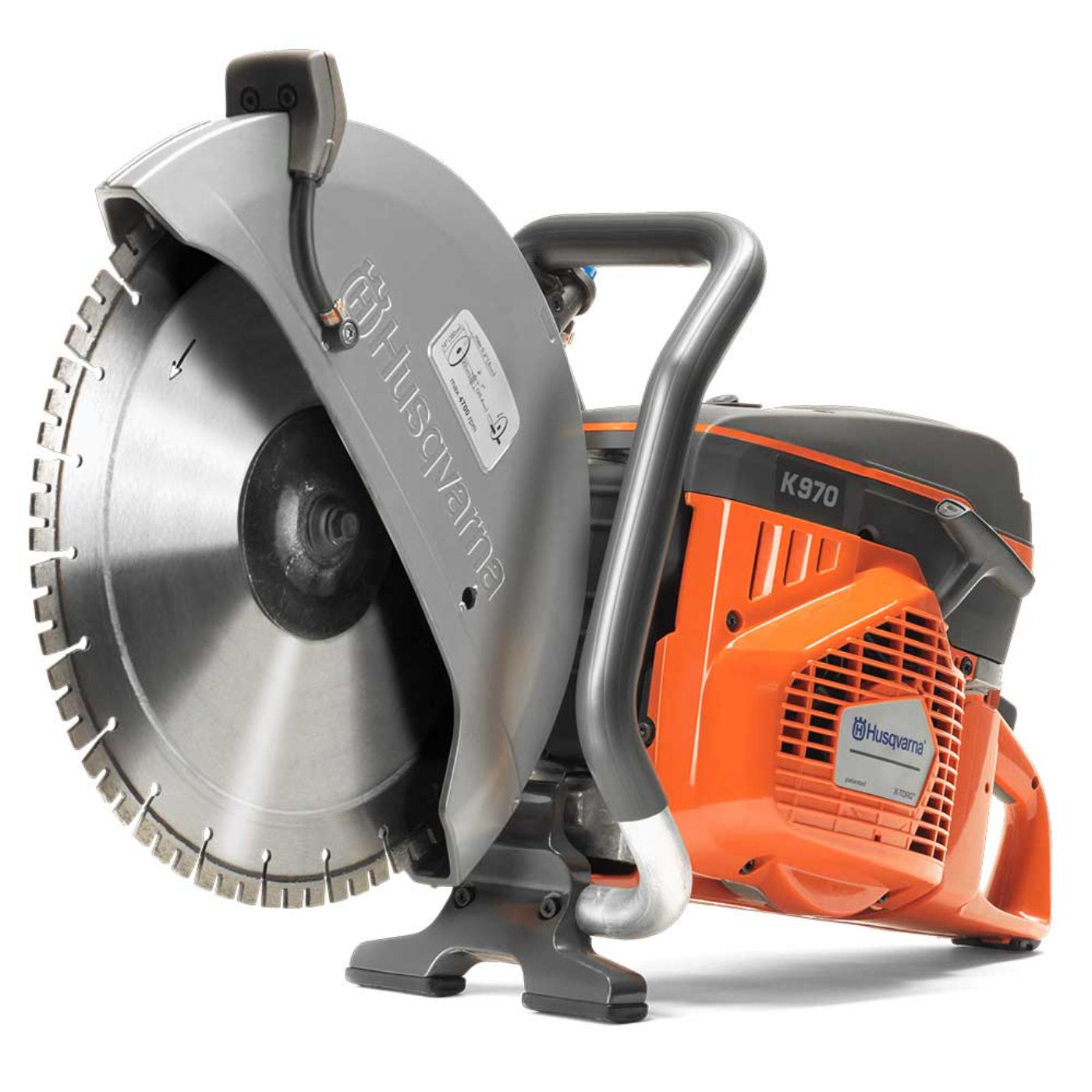

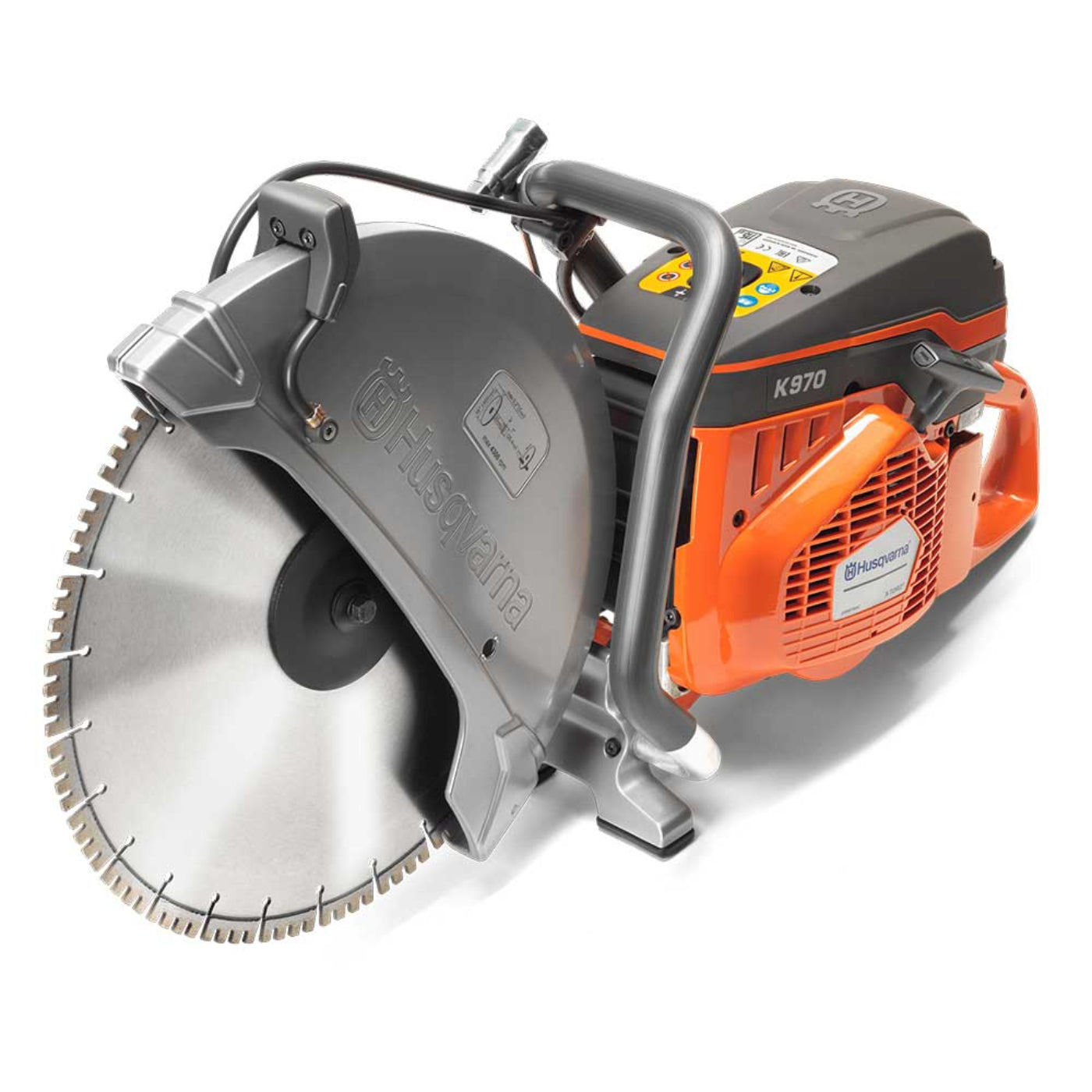

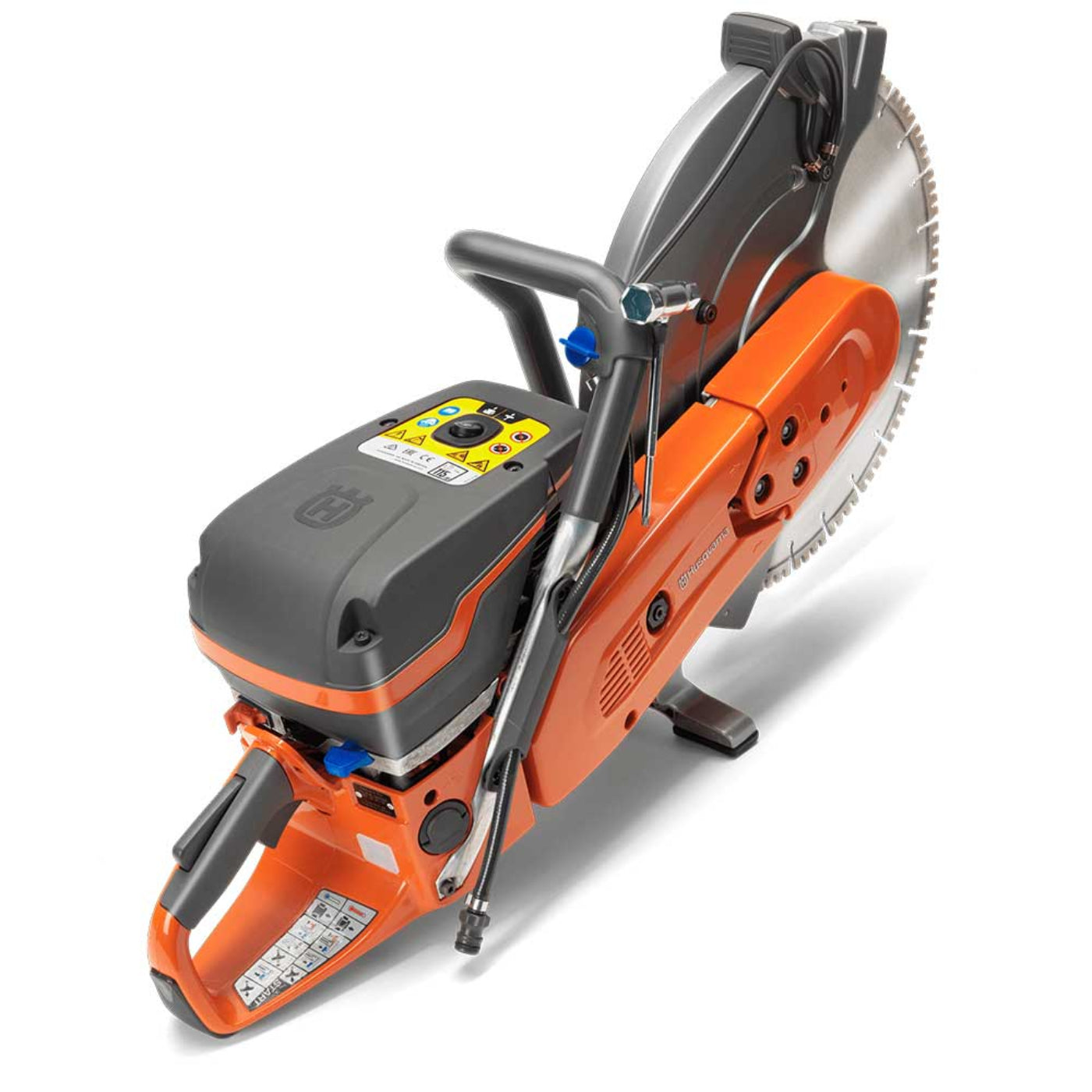

Husqvarna K 970 Gas Power Cutter - 967348001

Husqvarna K 970 Gas Power Cutter - 967348001

Sturdy, reliable, light and powerful - the K 970 power cutter is ready to perform when you are. The ultimate choice when you need an all-round cutter performing in the toughest conditions, withstanding climate and fuel variations. Suitable for road works when used with the corresponding KV 970 trolley. The trolley also means you can fully concentrate on the cutting job.

Features

• For many different cutting applications including concrete floors and walls as well as blocks, curbstones, pavers, asphalt, rails and much more
• Versatile cutter for use in construction, landscaping, installation work and roadwork applications
• Semi-automatic SmartTension minimizes the risk of under- and over tensioning
• Less sensitive to outdoor conditions and fuel variations, thanks to the cylinder design and muffler with integrated heat deflector
• Unique design of the carburetor, cylinder and digital ignition system, together with air purge and decompression valve, ensure an easy start

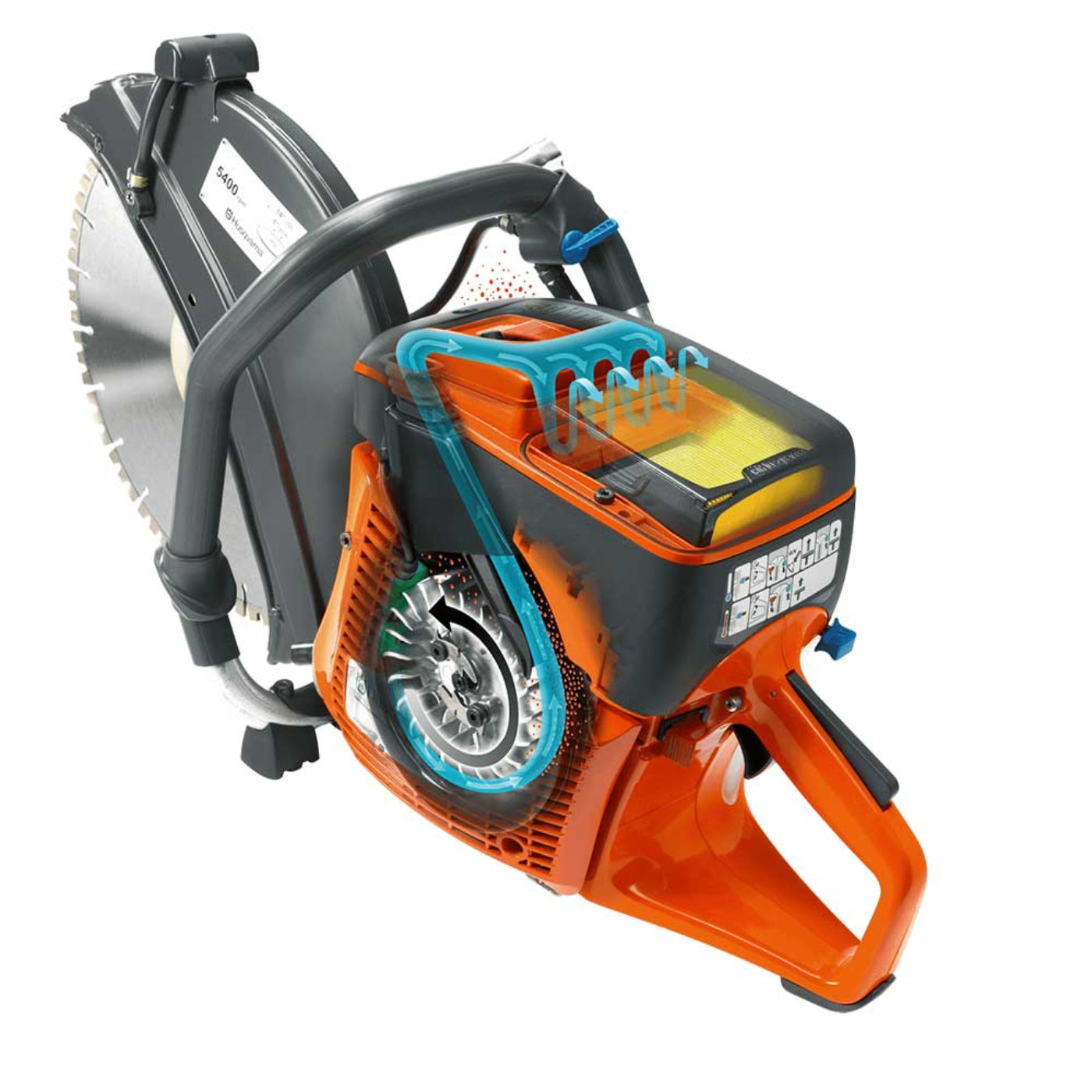

• Strong Poly-V belt combined with our maintenance-free DuraStarter and efficient filter-system active Air Filtration ensure long service intervals

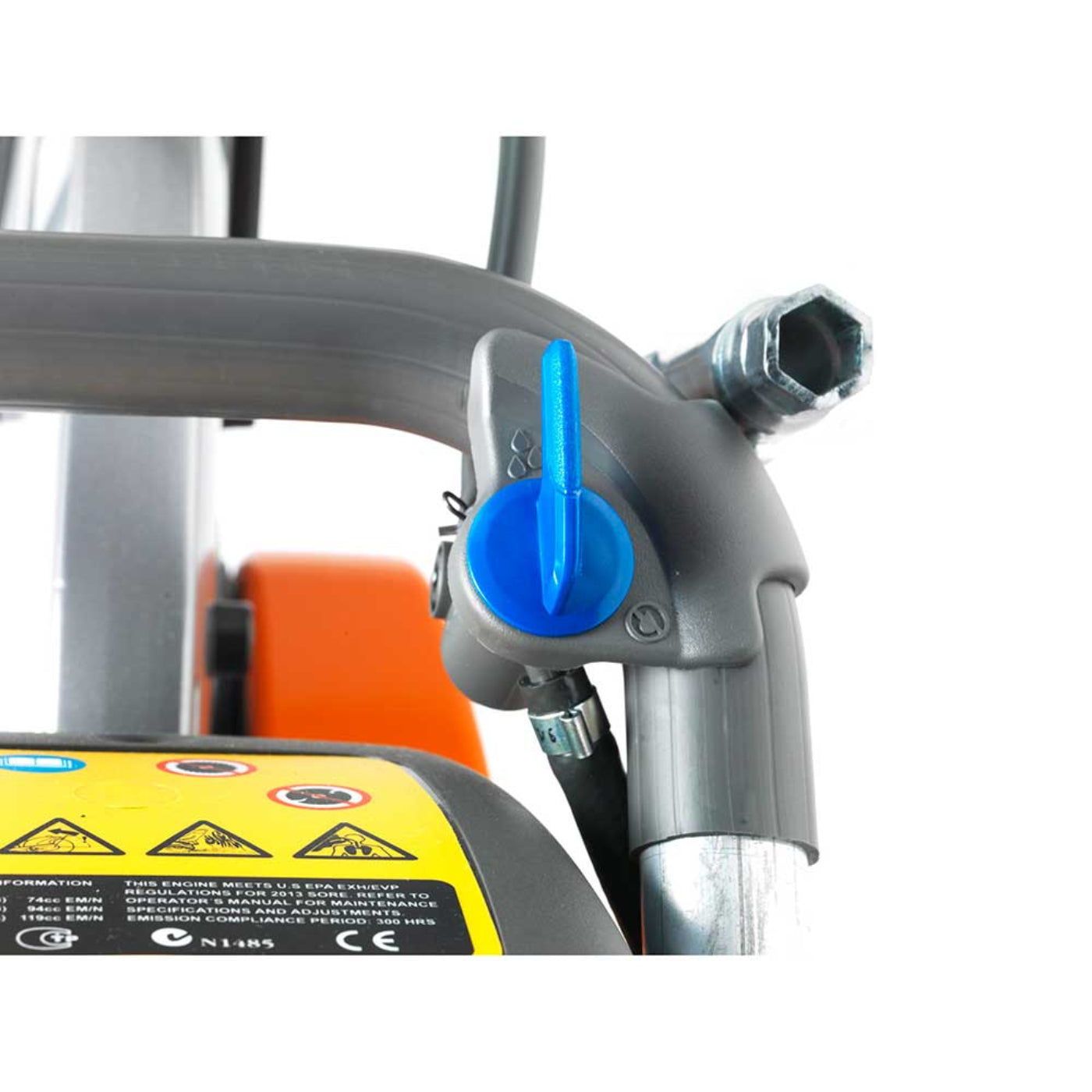

• Progressive water valve for exact adjustment of water volume to efficiently bind the dust and reduce slurry
• X-Torq engine produces less emissions, has lower fuel consumption and results in more power
• SmartCarb™ built-in automatic filter compensation maintains high power during the air filter life time
• Blades with 20mm and 25.4mm bore can be fitted thanks to the reversible blade bushing
• Water feed via Gardena hose connection
• Blades sold separately

Specifications

What our Experts Think

• Professional‑grade core drilling in a compact package
  Lightweight yet rugged, the DMS 180 offers reliable performance for concrete, masonry and structural penetrations — ideal for plumbing, HVAC, electrical and utility holes up to 6 in (150 mm) diameter.

• Easy setup with accurate alignment
  The V‑groove roller carriage and rigid stand ensure straighter holes with minimal adjustment, while the mechanical clutch and overload protection safeguard the motor — reducing downtime and maintenance.

• Simple, job‑ready power
  Runs on standard 100–120 V single‑phase power with a ~2.3–2.5 hp motor, so it’s plug‑and‑play on most jobsites without special power gear — boosting productivity for contractors and rental pros.

• Angle drilling flexibility
  Stand tilts for angled drilling, expanding its versatility for awkward penetrations and non‑standard positions — a valuable feature on renovation and retrofit projects.

• Portable & user‑friendly design
  At about ~51 lbs total weight, the rig is easy to transport, set up and move between locations, reducing operator fatigue and increasing jobsite flow.

Q&A

Q: What is the Husqvarna DMS 180 Core Drill Rig?
A: A lightweight corded core drill rig designed for professional concrete and masonry drilling with accurate, powerful performance in a compact, easy‑to‑transport package.

Q: What drilling capacity does it offer?
A: It supports core drilling up to 6 in (≈150 mm) diameter and has a 19 in (≈480 mm) drilling stroke, suitable for HVAC, plumbing, electrical holedrilling and general construction tasks.

Q: What power and motor specs does model 966916101 use?
A: Equipped with a 2.3–2.5 hp (~1.8–1.9 kW) electric motor, running on 100–120 V, single‑phase power with ~15 A current and built‑in electronic overload protection.

Q: What design features improve accuracy and safety?
A: A V‑groove roller carriage ensures precise alignment, and a mechanical clutch helps protect the motor from damage during heavy drilling.

Q: How easy is it to use and transport?
A: It’s lightweight (~51 lb / ~23 kg) and compact with an integrated carrier handle and optional vacuum or anchor base for quick setup, making it ideal for rental shops and mobile jobsite use.

Q: Where is this drill best used?
A: Great for concrete core drilling in construction, renovation, utility installation, plumbing, HVAC, and electrical penetration applications where precision and portability are needed

Maintenance Tips

• Inspect bits & tooling before each use; replace worn or damaged core bits.

• Clean dust, slurry & debris from rails, slides, and motor area after every job.

• Check and tighten all fasteners before operation to ensure rig stability.

• Maintain water feed system — flush hoses and nozzles to avoid clogs.

• Lubricate rails, lead screws, and moving parts per manual intervals.

• Monitor electrical cables & connections for wear or damage; repair promptly.

• Verify mounting anchors/bases are secure before drilling starts.

• Inspect and service the drive motor & gearbox at scheduled intervals.

• Store the rig dry and protected to prevent corrosion and electrical issues.

• Follow operator manual service schedule for professional checks and part replacement
