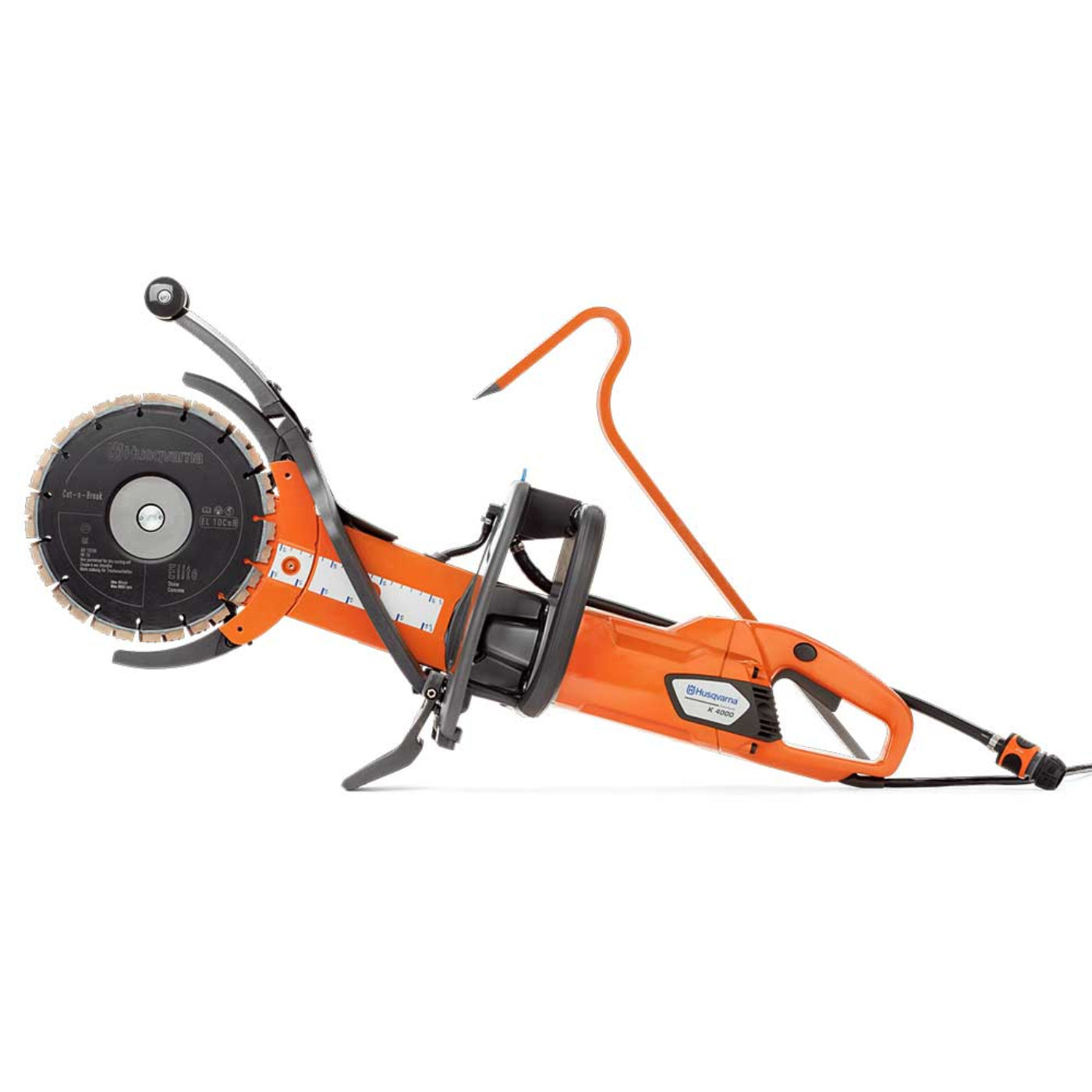

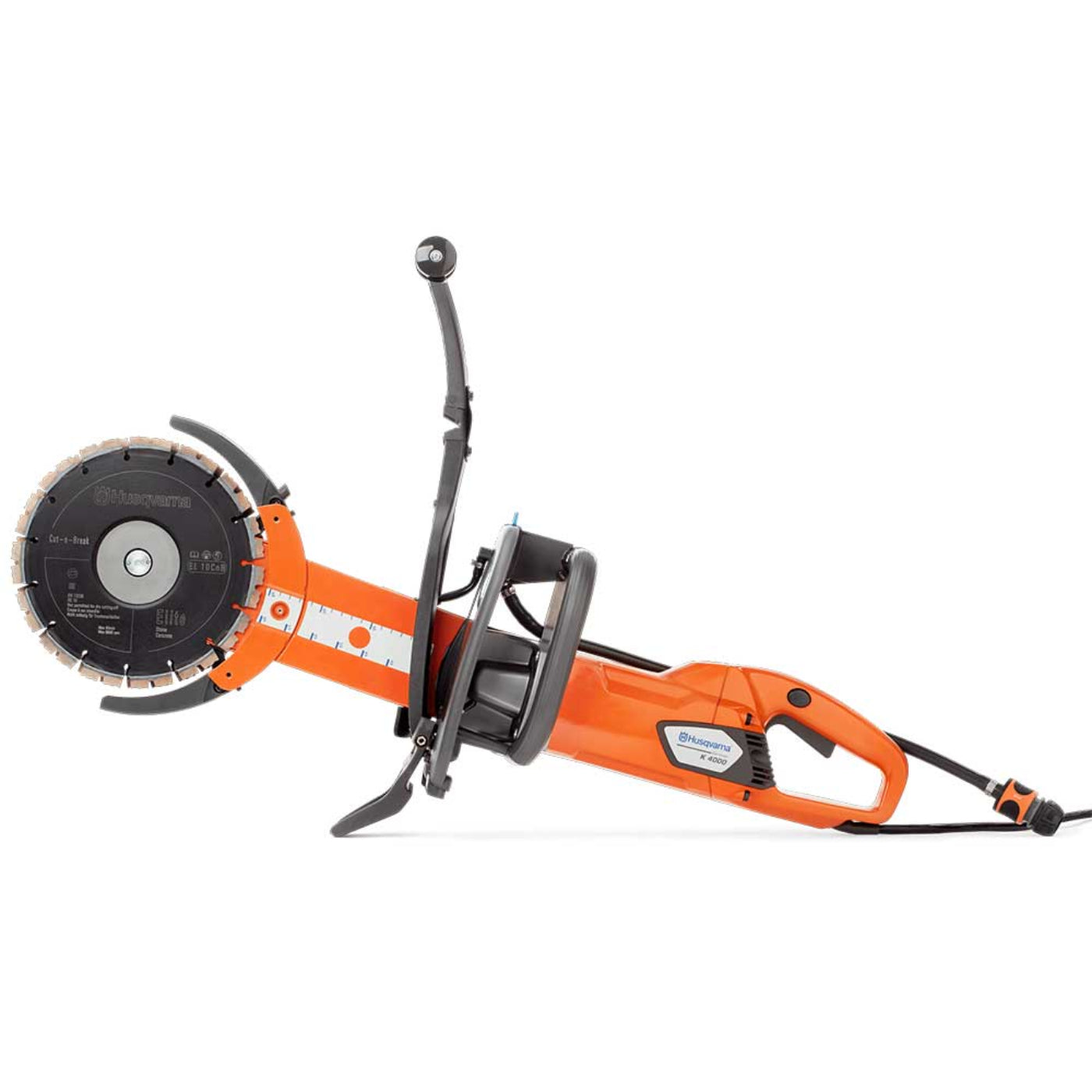

Husqvarna K 4000 Electric Cut-n-Break Power Cutter - 967083301

Husqvarna K 4000 Electric Cut-n-Break Power Cutter - 967083301

Our Cut-n-Break method is the natural choice when you need to cut deep but want a machine with low tool and maintenance costs. The K 4000 Cut-n-Break enables you to cut as deep as 400 mm from one side. Suitable for flush cutting close to walls and floors as well as for smaller jobs like window openings where you want to avoid overcutting at the corners.

Features

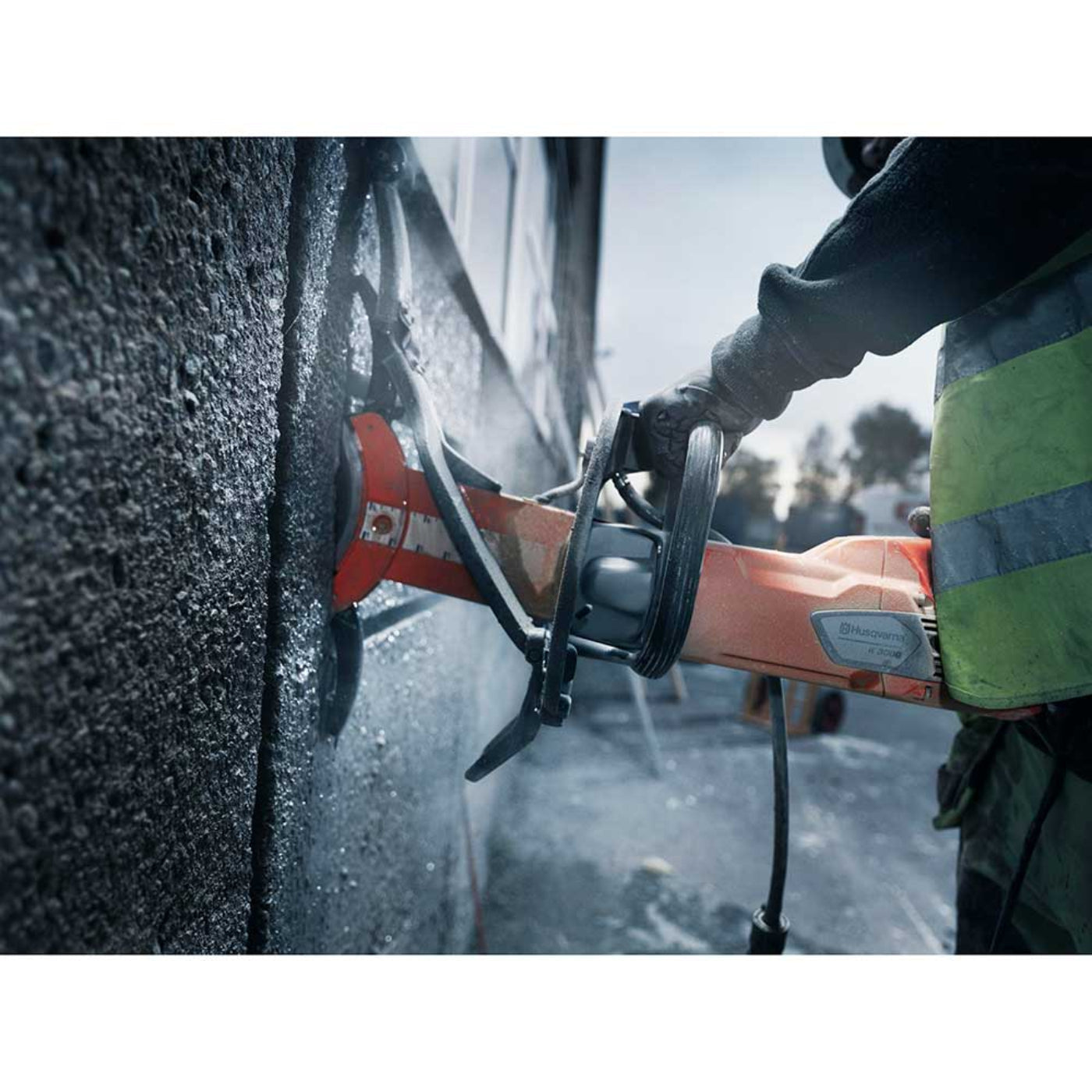

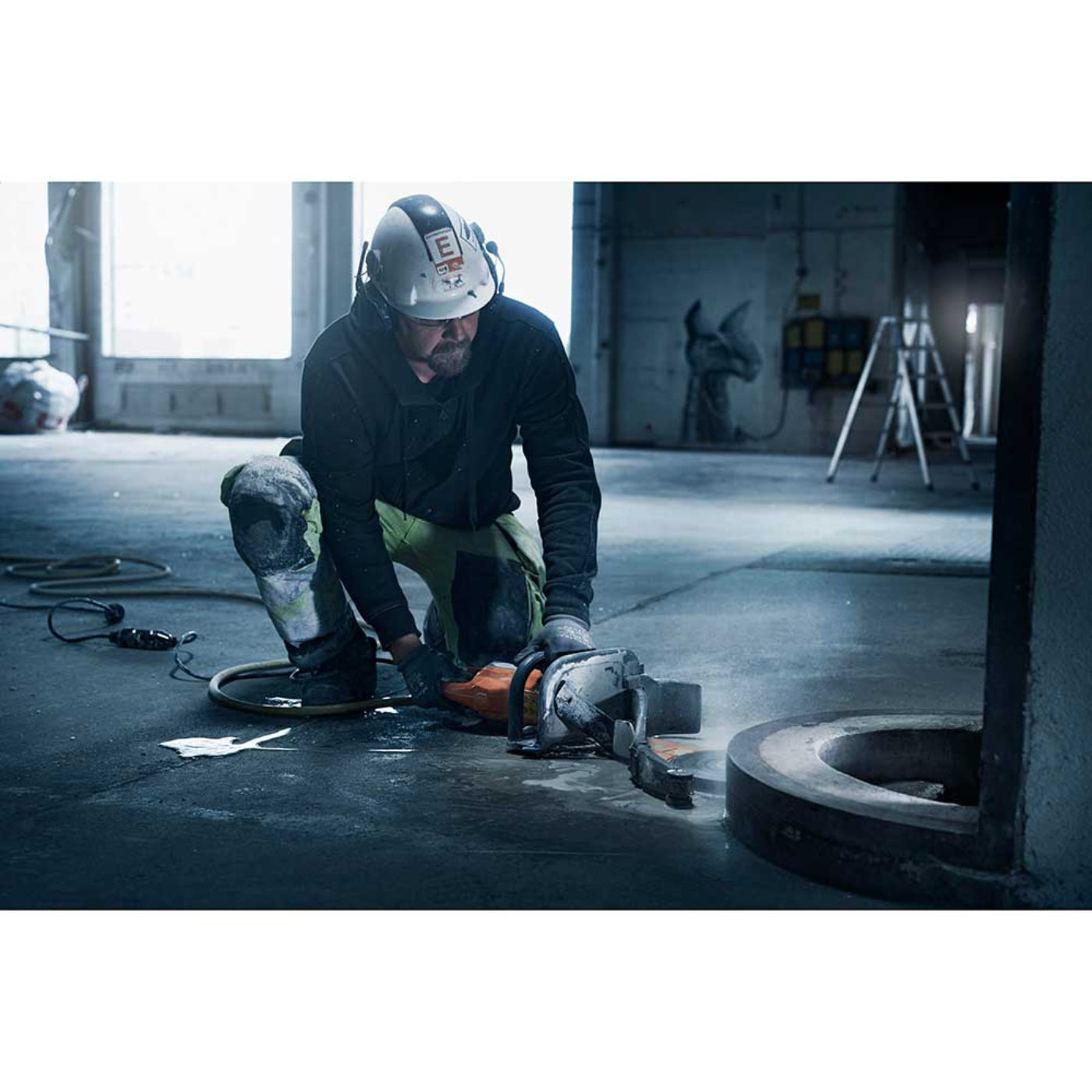

• For cutting concrete walls and floors, building blocks, curbstones, garden pavers, pipes, cast concrete, deep grooves and more
• Unique cut-n-break method you can work your way through the material step-by step at a low tool cost

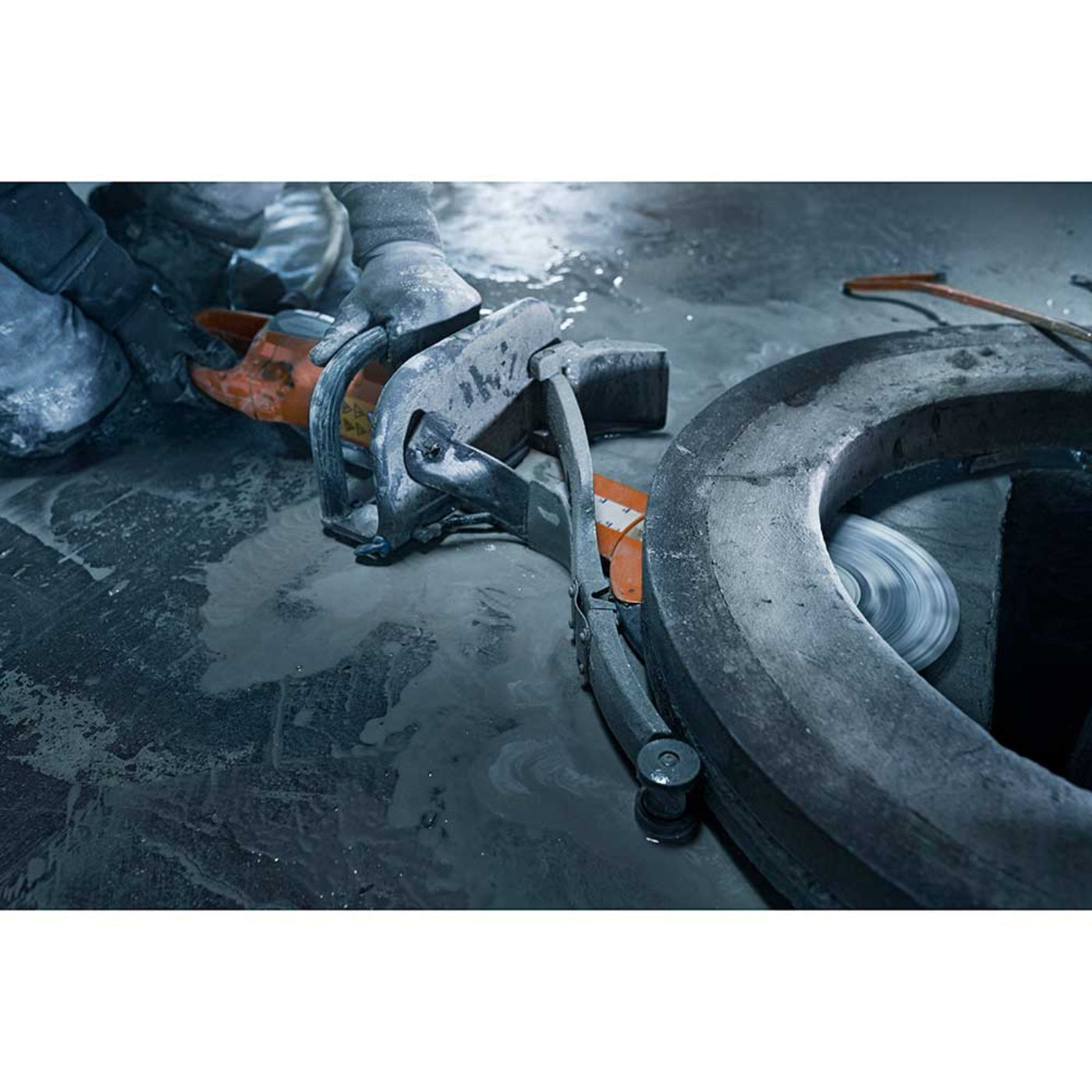

• Perfect for flush cutting concrete
• Adjustable blade guard allows close cutting to walls and floors
• Long body and double cutting blades allow you to make cuts up to 16" deep
• Power cord inlet located underneath the handle enables ease of use and comfortable handling with hassle free operation
• New pop-up carbon brushes protects the collector from unforeseen rotor changes which increases reliability and enables longer service intervals
• Powerful electric cutter for both indoor and outdoor use
• Electronic Softstart provides starting with normal, slow acting fuses
• Water feed via Gardena hose connection
• Includes: set of blades, breaking tool, combination tool and operator's manual

Specifications

What our Experts Think

• Professional‑grade core drilling in a compact package
  Lightweight yet rugged, the DMS 180 offers reliable performance for concrete, masonry and structural penetrations — ideal for plumbing, HVAC, electrical and utility holes up to 6 in (150 mm) diameter.

• Easy setup with accurate alignment
  The V‑groove roller carriage and rigid stand ensure straighter holes with minimal adjustment, while the mechanical clutch and overload protection safeguard the motor — reducing downtime and maintenance.

• Simple, job‑ready power
  Runs on standard 100–120 V single‑phase power with a ~2.3–2.5 hp motor, so it’s plug‑and‑play on most jobsites without special power gear — boosting productivity for contractors and rental pros.

• Angle drilling flexibility
  Stand tilts for angled drilling, expanding its versatility for awkward penetrations and non‑standard positions — a valuable feature on renovation and retrofit projects.

• Portable & user‑friendly design
  At about ~51 lbs total weight, the rig is easy to transport, set up and move between locations, reducing operator fatigue and increasing jobsite flow.

Q&A

Q: What is the Husqvarna DMS 180 Core Drill Rig?
A: A lightweight corded core drill rig designed for professional concrete and masonry drilling with accurate, powerful performance in a compact, easy‑to‑transport package.

Q: What drilling capacity does it offer?
A: It supports core drilling up to 6 in (≈150 mm) diameter and has a 19 in (≈480 mm) drilling stroke, suitable for HVAC, plumbing, electrical holedrilling and general construction tasks.

Q: What power and motor specs does model 966916101 use?
A: Equipped with a 2.3–2.5 hp (~1.8–1.9 kW) electric motor, running on 100–120 V, single‑phase power with ~15 A current and built‑in electronic overload protection.

Q: What design features improve accuracy and safety?
A: A V‑groove roller carriage ensures precise alignment, and a mechanical clutch helps protect the motor from damage during heavy drilling.

Q: How easy is it to use and transport?
A: It’s lightweight (~51 lb / ~23 kg) and compact with an integrated carrier handle and optional vacuum or anchor base for quick setup, making it ideal for rental shops and mobile jobsite use.

Q: Where is this drill best used?
A: Great for concrete core drilling in construction, renovation, utility installation, plumbing, HVAC, and electrical penetration applications where precision and portability are needed

Maintenance Tips

• Inspect bits & tooling before each use; replace worn or damaged core bits.

• Clean dust, slurry & debris from rails, slides, and motor area after every job.

• Check and tighten all fasteners before operation to ensure rig stability.

• Maintain water feed system — flush hoses and nozzles to avoid clogs.

• Lubricate rails, lead screws, and moving parts per manual intervals.

• Monitor electrical cables & connections for wear or damage; repair promptly.

• Verify mounting anchors/bases are secure before drilling starts.

• Inspect and service the drive motor & gearbox at scheduled intervals.

• Store the rig dry and protected to prevent corrosion and electrical issues.

• Follow operator manual service schedule for professional checks and part replacement
