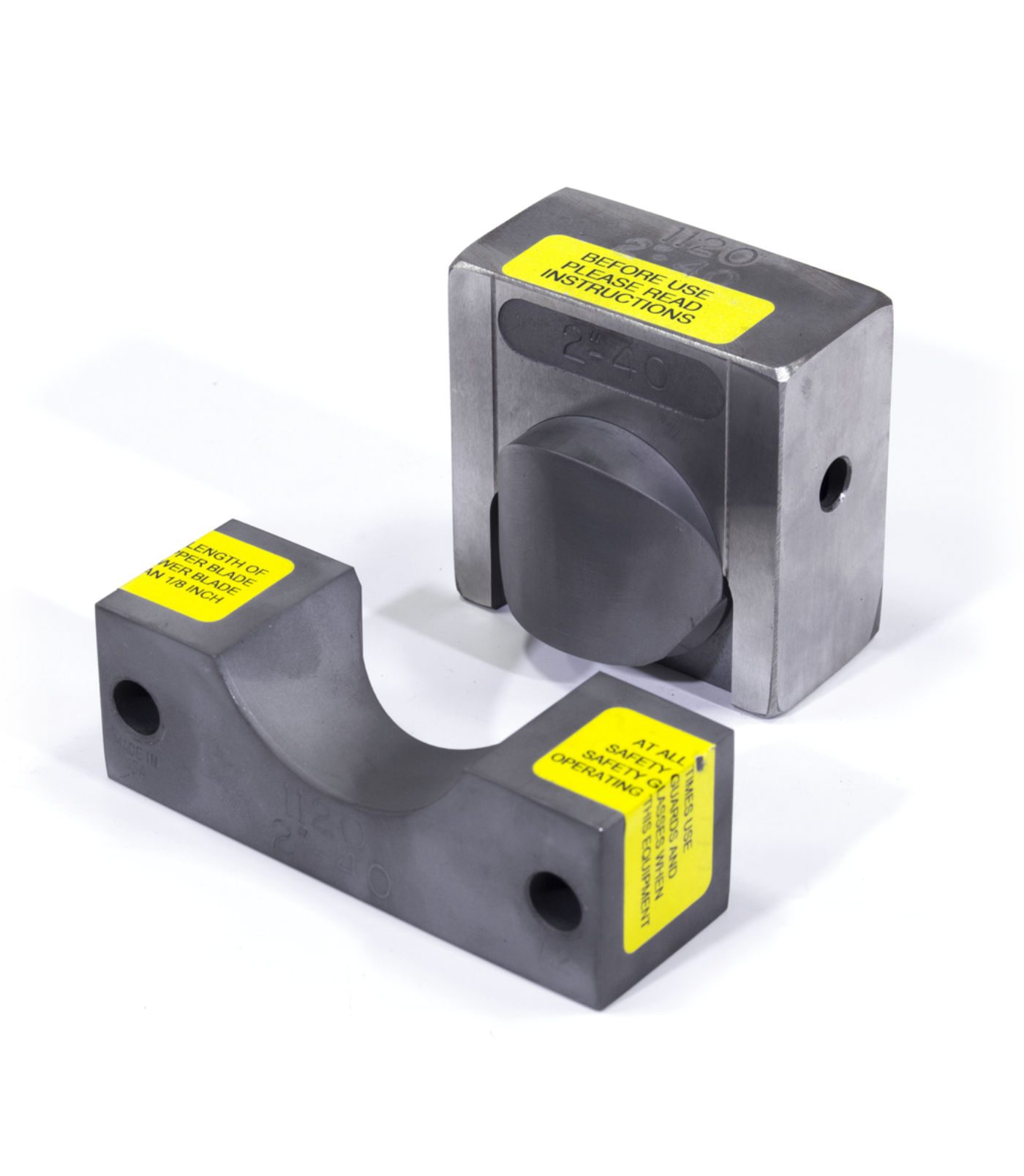

Designed for use with the Edwards Pipe Notcher Attachments, the Pipe Notcher Dies shear a perfect saddle cut in Schedule 40 pipe. Integrated alignment ensures your notches line up exactly, with a smooth precise shear every time. Requires an Edwards Pipe Notcher Attachment. Custom Dies for Schedule 80 and Tube are also available.

What our Experts Think

• Precision Schedule 40 Pipe Notcher Dies — the EDWARDS Pipe Notcher Dies Schedule 40 (ED9‑AC1044) are engineered to shear smooth, accurate saddle cuts in ½″ Schedule 40 pipe every time.
• Works with Edwards Pipe Notcher Attachments — designed specifically to pair with Edwards pipe notcher housings (sold separately) for ideal fit and performance.
• Integrated Alignment System — built‑in alignment ensures that cuts are repeatable and precisely positioned, reducing setup errors and material wastage.
• Heavy‑Duty, Shop‑Ready Build — rugged, hardened construction stands up to frequent use in fabrication and structural pipe work.
• Optimizes Pipe Joint Workflow — cuts eliminate the need for grinding or manual fitting before welding, saving time and improving joint quality.
• Expandable Tooling Options — additional dies for other pipe sizes and types (e.g., Schedule 80, tube) are available for broader applications.

Q&A

Q1: What is the ED9‑AC1044 Pipe Notcher Dies?
A: A precision saddle‑cut die set designed for use with Edwards pipe notcher attachments that cleanly cuts 1/2″ Schedule 40 pipe for accurate joints and fabrications.

Q2: What size pipe is this die set for?
A: Specifically configured for 1/2″ diameter Schedule 40 pipe — ideal for common structural and fabrication tubing.

Q3: What does “Schedule 40” mean here?
A: It refers to the standard wall thickness for steel pipe, ensuring the die set matches typical fabrication materials.

Q4: What type of cuts does it produce?
A: These dies create smooth, precise saddle cuts that ensure proper fit‑up for welding or assembly without excessive grinding or manual shaping.

Q5: What machines is it compatible with?
A: Designed to work with Edwards pipe notcher attachments when installed on ironworkers that support notcher tooling, such as the pipe notcher housing accessory.

Q6: Is the alignment accurate?
A: Yes — integrated alignment features in the die design help ensure notches line up exactly for consistent results every cut.

Q7: Does it include the housing or press?
A: No — it’s a replacement die set only and requires an Edwards pipe notcher attachment to operate.

Q8: Are other sizes available?
A: Yes — Edwards offers custom dies for Schedule 80 and tube sizes beyond this Schedule 40 set.

Q9: Why choose these dies?
A: They save setup time, reduce manual finishing, and deliver cleaner, more precise saddle joints for structural or welded assemblies.

Q10: What’s the typical weight and size?
A: Roughly 7 lbs with 6″ × 6″ × 6″ dimensions, compact and easy to install on notcher attachments.

Maintenance Tips

• Clean After Every Use: Remove metal shavings and debris from die surfaces to prevent buildup and maintain clean, precise notches.
• Light Lubrication: Apply a thin coat of machine oil to die cutting edges and contact surfaces to reduce friction and corrosion.
• Inspect for Wear or Damage: Regularly check dies for chips, dulling, or deformation; replace worn dies promptly to ensure accurate Schedule 40 pipe notching.
• Verify Fit & Alignment: Confirm the die seats correctly in the pipe notcher housing and aligns with the cutter before each operation to prevent uneven wear.
• Protect During Storage: Store dies in a dry area (ideally in their case) and use rust inhibitor on exposed steel when idle.
• Handle with Care: Avoid dropping or striking dies against hard surfaces to keep cutting edges sharp and true.
