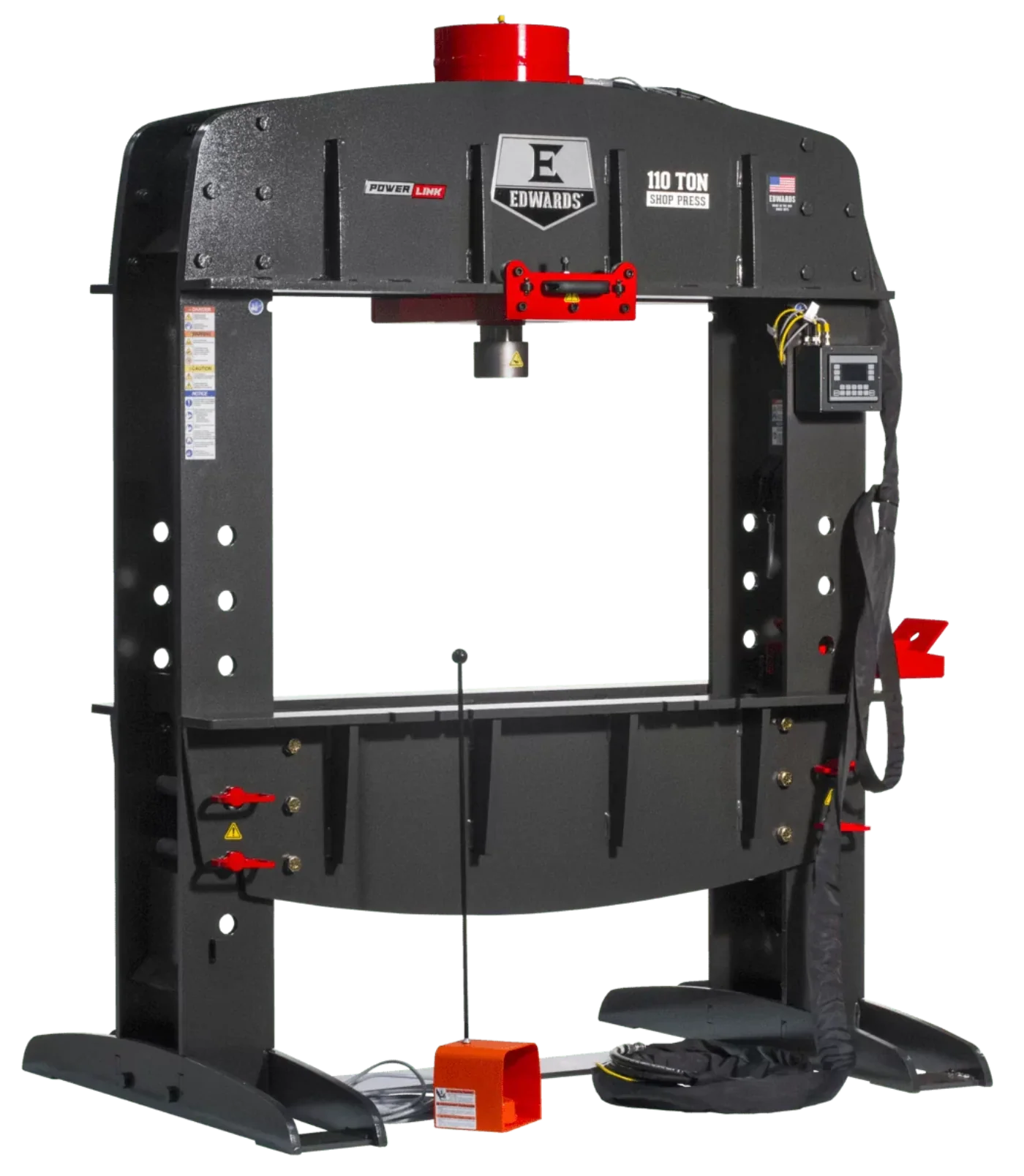

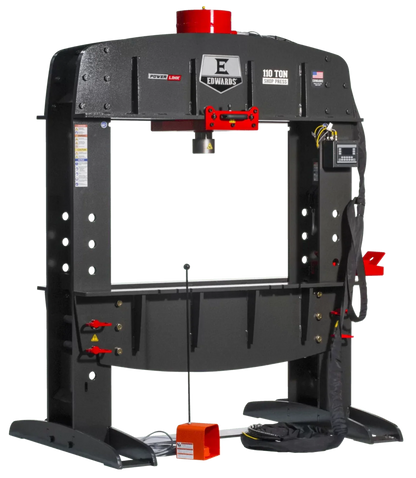

EDWARDS 110 Ton Shop Press w/ PLC - ED9-HAT9050
Our most powerful Shop Press, this 110 Ton Shop Press includes a Programmable Logic Control (PLC) to maximize your efficiency with shorter cycle times - over a 50% time savings. With the greatest capacity this Shop Press is able to accept all of our standard tooling along with custom tooling in its large work table area, the 110 Ton can press bearings, bend metal or straighten your parts. The rolling cylinder, open-sided design, and electric foot pedal make this machine simple to use. Must be run off an Edwards Ironworker with PowerLink System or Portable Power Unit.
Features
- 20' quick-connect hoses for simple "plug & play" operation.
- Accepts a variety of standard and custom tooling.
- Electric foot pedal with integrated jog control.
- Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket.
- Magnetic PLC control box mounts anywhere on the shop press for user performance and comfort.
- Open-sided design allows longer material to pass through the frame.
- Programmable Logic Control (PLC) allows operators to create repeatable actions, improving efficiency.
- Rolling cylinder provides maximum adaptability.
- The PLC delivers adjustable PSI allows the user to set the desired pressure accurately.
- The PLC offers adjustable up/down stroke control providing up to 50% time savings.
Specifications
| Stock Number |
ED9-HAT9050 |
| Gross Weight (Lbs) |
2200 |
| Minimum Ram Speed (In./Sec) |
.186 |
| Minimum Return Speed (In./Sec) |
.220 |
| Model Number |
HAT9050 |
| Net Weight (Lbs.) |
2200 |
| Product Dimensions (In.) |
48 x 64 x 88 |
| Rating (Tons) |
110 |
| Steel Frame Thickness (In.) |
3/4 |
| Stroke (In.) |
12-1/4 |
| Weight (Lbs.) |
2690 |
| Work Table (In.) |
37-7/16 x 48 |
| Gross Weight |
2200.0 |
What our Experts Think
-
Professional‑class pressing performance
With a full 110 ton capacity, this press handles serious metalworking tasks — from straightening and bearing installs to deep forming and heavy assembly.
-
PLC control boosts accuracy & productivity
Programmable Logic Control enables repeatable cycles, precise pressure settings, and smoother operations — ideal for production environments and repeat jobs.
-
Efficient and operator‑friendly
Foot pedal/jog control and adjustable table make setups faster and daily use more comfortable, reducing fatigue and downtime.
-
Robust industrial build
Heavy‑gauge steel construction and quality hydraulic components ensure long service life even under demanding, high‑use conditions.
-
Versatile for workshop needs
Works well with a wide range of press tooling and fixtures — making it a flexible choice for fabrication, maintenance, and repair shops.
Q&A
**Q: What is the EDWARDS 110 Ton Shop Press w/ PLC (ED9‑HAT9050)?
A: A heavy‑duty 110 ton hydraulic shop press with Programmable Logic Control (PLC) for automated, repeatable pressing operations — ideal for bending, straightening, and forming metal in industrial workshops.
Q: What does the PLC add?
A: The PLC control system allows programmable up/down travel, adjustable pressure settings, and repeatable cycles that increase accuracy and reduce operator time.
Q: What applications can it handle?
A: Designed for bearing installation, plate bending, part straightening, and pressing components using standard and custom tooling.
Q: What are its core specifications?
A: 110 ton capacity, robust steel frame, large work table, and long stroke travel suited for heavy industrial tasks.
Q: How is it controlled?
A: Operated via a joystick/foot pedal with jog control and PLC panel for precise cycle execution.
Q: What tooling is compatible?
A: Accepts a wide range of Edwards press tooling, adapters, and accessories for bending, punching, and forming.
Q: Who should use it?
A: Fabricators, machine shops, and industrial maintenance teams needing a high‑capacity, automated hydraulic press for consistent, heavy workloads.
Q: Why choose this press?
A: Combines power, durability, and PLC automation to improve efficiency, repeatability, and throughput in demanding metalworking environments.
Maintenance Tips
-
Check Hydraulic Fluid: Maintain clean, properly leveled hydraulic oil for consistent pressing force.
-
Inspect Hoses & Fittings: Look for leaks, cracks, or wear; tighten or replace to ensure safety and efficiency.
-
Lubricate Moving Parts: Apply light oil to ram guides, pins, and bearings to reduce friction and prevent corrosion.
-
Verify Alignment & Pressure: Regularly check ram alignment and PLC pressure settings for precise, repeatable operation.
-
Secure Frame & Hardware: Ensure all bolts and fasteners are tight to prevent structural stress.
-
Clean Electrical Components: Keep PLC and wiring free of dust, metal shavings, and moisture to prevent malfunctions.
-
Safety Checks: Test emergency stops, limit switches, and pressure relief valves before operation.
