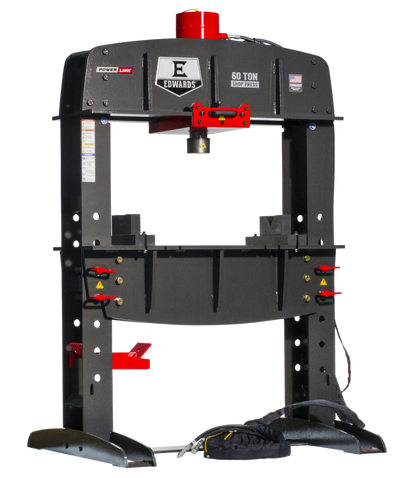

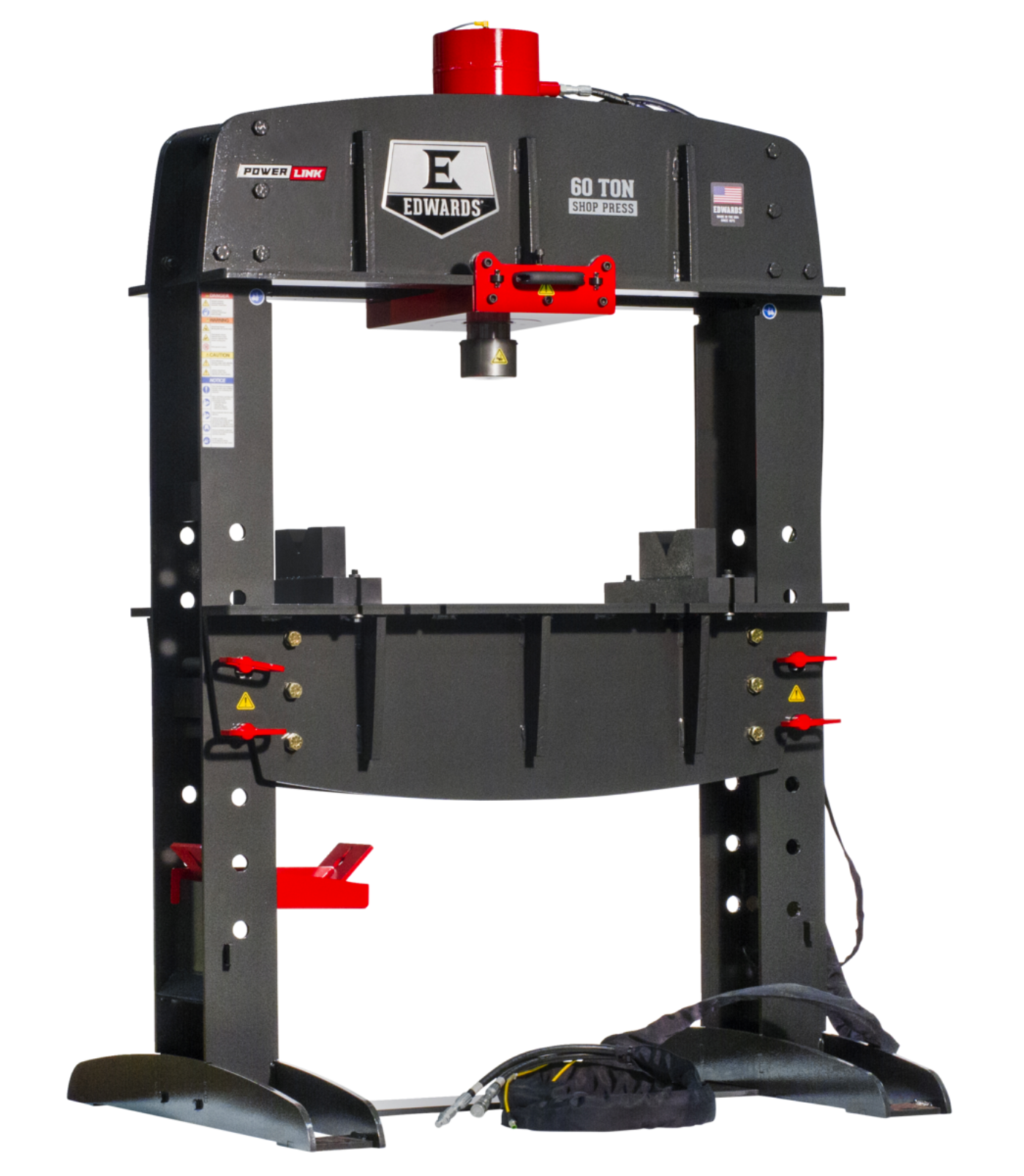

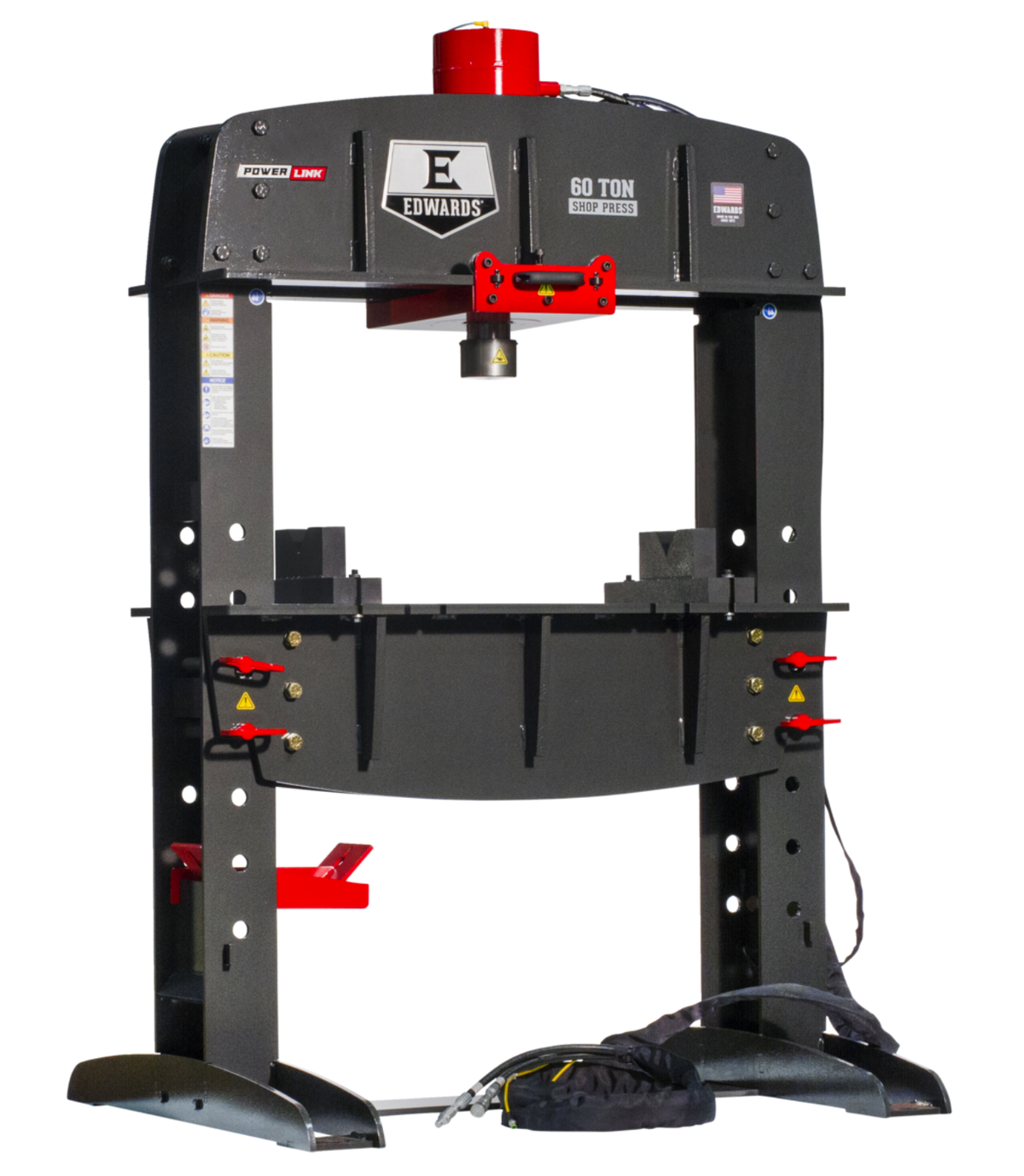

EDWARDS 60 Ton Shop Press - ED9-HAT8000
Powerful and flexible, the 60 Ton Shop Press can easily improve your productivity. With a large work table area, this Shop Press accepts both standard and custom tooling to press bearings, bend metal or straighten a part. The rolling cylinder, open-sided design, pressure gauge, and electric foot pedal make this machine simple to use. Must be run off an Edwards Ironworker with PowerLink System or Portable Power Unit.
Features
- 20' quick-connect hoses for simple "plug & play" operation.
- Accepts a variety of standard and custom tooling.
- Electric foot pedal with integrated jog control.
- Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket.
- Open-sided design allows longer material to pass through the frame.
- Pressure gauge provides accurate measurements allowing for easy repeatable parts production.
- Rolling cylinder provides maximum adaptability.
Specifications
| Gross Weight (Lbs) |
1900 |
| Minimum Ram Speed (In./Sec) |
.330 |
| Minimum Return Speed (In./Sec) |
.456 |
| Net Weight (Lbs.) |
1900 |
| Product Dimensions (In.) |
48 x 54 x 86 |
| Rating (Tons) |
60 |
| Steel Frame Thickness (In.) |
1/2 |
| Stroke (In.) |
12-1/4 |
| Weight (Lbs.) |
1900 |
| Work Table (In.) |
39-1/4 x 42 |
What our Experts Think
-
Heavy‑Duty 60 Ton Capacity
Provides powerful pressing force for demanding industrial applications like bending, straightening, and forming thick materials.
-
Precision & Control
Adjustable pressure enables consistent, accurate results with less scrap and rework.
-
Industrial‑Grade Durability
Rugged steel frame and components are built to withstand continuous high‑volume shop use.
-
Operator‑Friendly Design
Simple setup and intuitive controls help reduce training time and improve workflow efficiency.
-
Versatile Applications
Well‑suited for metal fabrication, automotive work, maintenance shops, and structural assembly tasks.
Q&A
Q: What is the EDWARDS 60 Ton Shop Press (ED9‑HAT8000)?
A: A heavy‑duty hydraulic shop press that delivers up to 60 tons of force for pressing bearings, bending, straightening, and other fabrication tasks. It’s designed to boost shop productivity with robust performance and versatility.
Q: How does it operate?
A: It must be powered by an Edwards Ironworker with a PowerLink™ System or an Edwards Portable Power Unit — making setup simple with 20′ quick‑connect hoses and “plug‑and‑play” operation.
Q: What tooling can be used with this press?
A: It accepts a wide range of standard and custom press tooling, expanding metal forming and fabrication capabilities.
Q: Why choose this Edwards 60 Ton Shop Press?
A: It offers industrial‑grade strength, flexible tooling support, precise hydraulics, and repeatable performance — ideal for professional fabrication shops and heavy‑duty metalworking.
Maintenance Tips
-
Clean After Each Use: Brush away chips, dust, and fluid buildup from the work table and moving surfaces to maintain smooth operation.
-
Inspect Hydraulic System: Check hoses, fittings, seals, and quick‑connects for leaks or damage; maintain proper fluid level and bleed air when necessary.
-
Lubricate Guide & Pivot Points: Apply light oil to rolling cylinder guides, pivot points, and adjustment mechanisms to reduce wear and friction.
-
Tighten Bolts & Fasteners: Regularly ensure frame bolts, table adjustments, and attachment hardware are secure to prevent misalignment.
-
Check Alignment & Press Bed Level: Verify the table and ram are aligned for consistent, accurate force application.
-
Verify Controls & Safety: Test foot pedal, jog control, pressure gauge, and emergency stop before operation.
-
Prevent Corrosion: Store in a dry environment and apply rust inhibitor to exposed steel surfaces.
