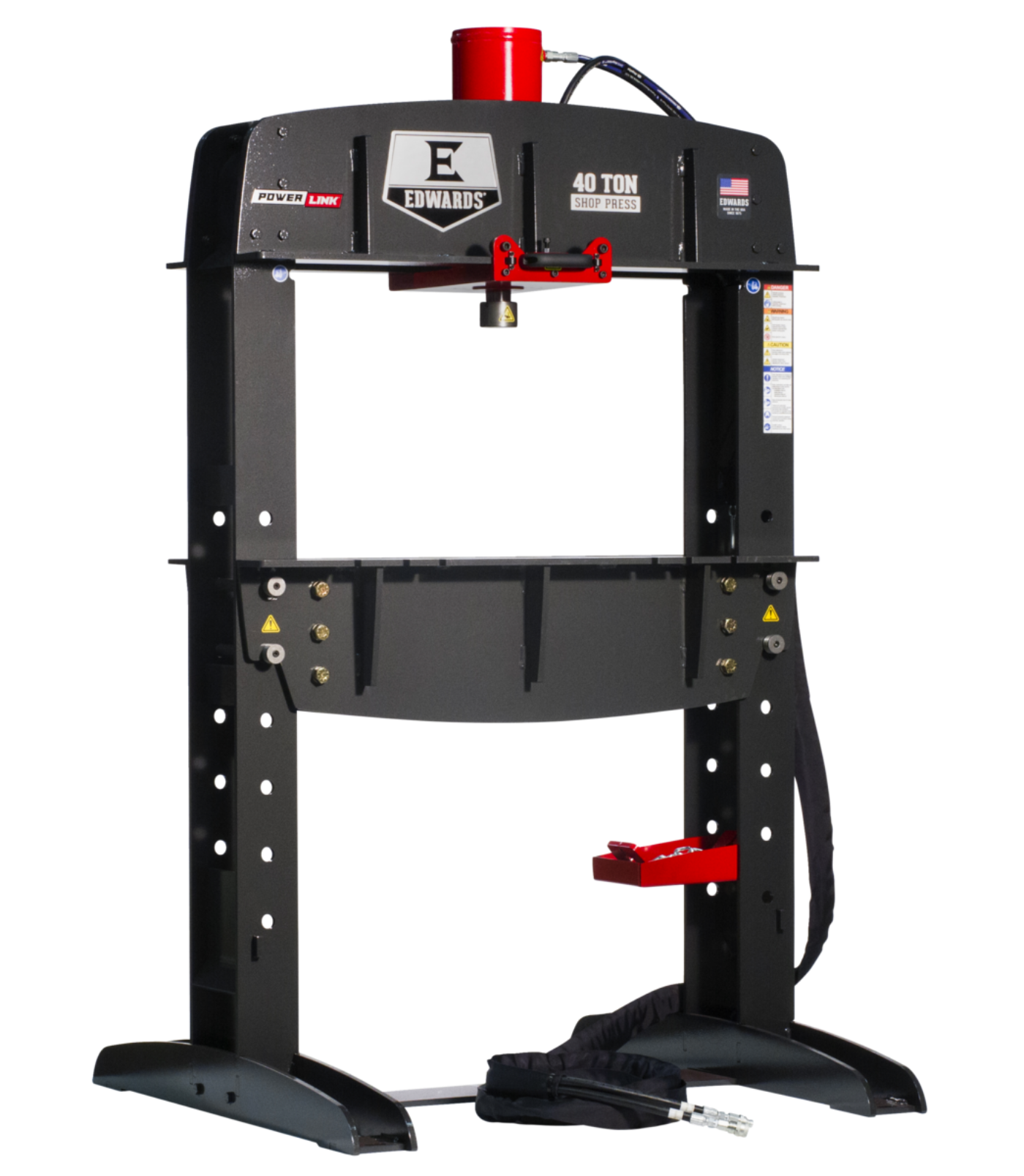

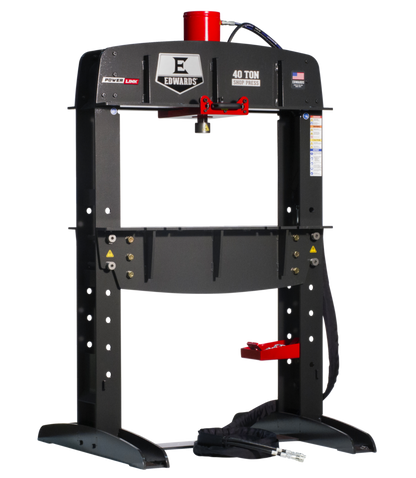

EDWARDS 40 Ton Shop Press - ED9-HAT4000
The 40 Ton Shop Press is rugged and economical. With a rolling cylinder, pressure gauge, open-sided design, and hand/jog controls, it is an easy to use, powerful machine. Able to accept standard & custom tooling the smooth and precise pressure is perfect for any shop. Must be run off an Edwards Ironworker with PowerLink System or Portable Power Unit.
Features
- 20' quick-connect hoses for simple "plug & play" operation.
- Accepts a variety of standard and custom tooling.
- Easy-to-use hand/jog controls with integrated E-Stop.
- Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket.
- Open-sided design allows longer material to pass through the frame.
- Rolling cylinder provides maximum adaptability.
Specifications
| Gross Weight (Lbs) |
1430 |
| Minimum Ram Speed (In./Sec) |
.517 |
| Net Weight (Lbs.) |
1401 |
| Product Dimensions (In.) |
48 x 48 x 79 |
| Rating (Tons) |
40 |
| Steel Frame Thickness (In.) |
1/2 |
| Stroke (In.) |
12-1/4 |
| Weight (Lbs.) |
1400 |
| Work Table (In.) |
38 x 40-1/2 |
What our Experts Think
-
Powerful 40 Ton Capacity
Handles heavy-duty pressing, bending, and forming tasks with ease—perfect for demanding industrial applications.
-
Precision Control
Adjustable pressure ensures consistent, accurate results while reducing material waste.
-
Rugged, Long-Lasting Design
Industrial-grade steel construction provides durability for high-volume shop environments.
-
Easy, Operator-Friendly Use
Straightforward setup and intuitive controls make it simple to operate safely and efficiently.
-
Versatile Functionality
Ideal for pressing, straightening, bending, and assembly tasks across multiple metalworking applications.
Q&A
Q: What is the Edwards 40 Ton Shop Press (ED9‑HAT4000)?
A: A rugged, heavy‑duty hydraulic shop press designed for fabrication tasks like pressing, bending, and straightening with up to 40 tons of force.
Q: What power source does it require?
A: It must be powered by an Edwards Ironworker with a PowerLink™ System or a compatible portable hydraulic power unit.
Q: What tasks is this press ideal for?
A: Perfect for heavy pressing jobs in fabrication shops—installing/removing bearings, bending, straightening, and other forming tasks.
Q: Why choose this Edwards shop press?
A: It combines industrial‑grade strength, smooth hydraulic control, and versatile tooling support for efficient, professional results.
Maintenance Tips
-
Keep Surfaces Clean: Remove metal debris and dust after each use to prevent scoring and ensure smooth operation.
-
Lubricate Moving Components: Apply light machine oil to pivot points, guide rails, and ram to reduce friction and wear.
-
Inspect Hydraulic System: Check hoses, fittings, and cylinder for leaks; maintain proper hydraulic fluid levels and bleed air as needed.
-
Check Frame & Fasteners: Ensure the press frame, bolts, and bed are secure, straight, and free from cracks or deformation.
-
Prevent Rust & Corrosion: Store in a dry environment and apply anti-rust coating on exposed metal surfaces.
-
Test Pressure Gauge & Safety Features: Verify gauge accuracy and proper operation of safety valves before heavy use.
-
Align Press Bed & Ram: Maintain proper alignment for uniform force distribution and to protect tooling from damage.
