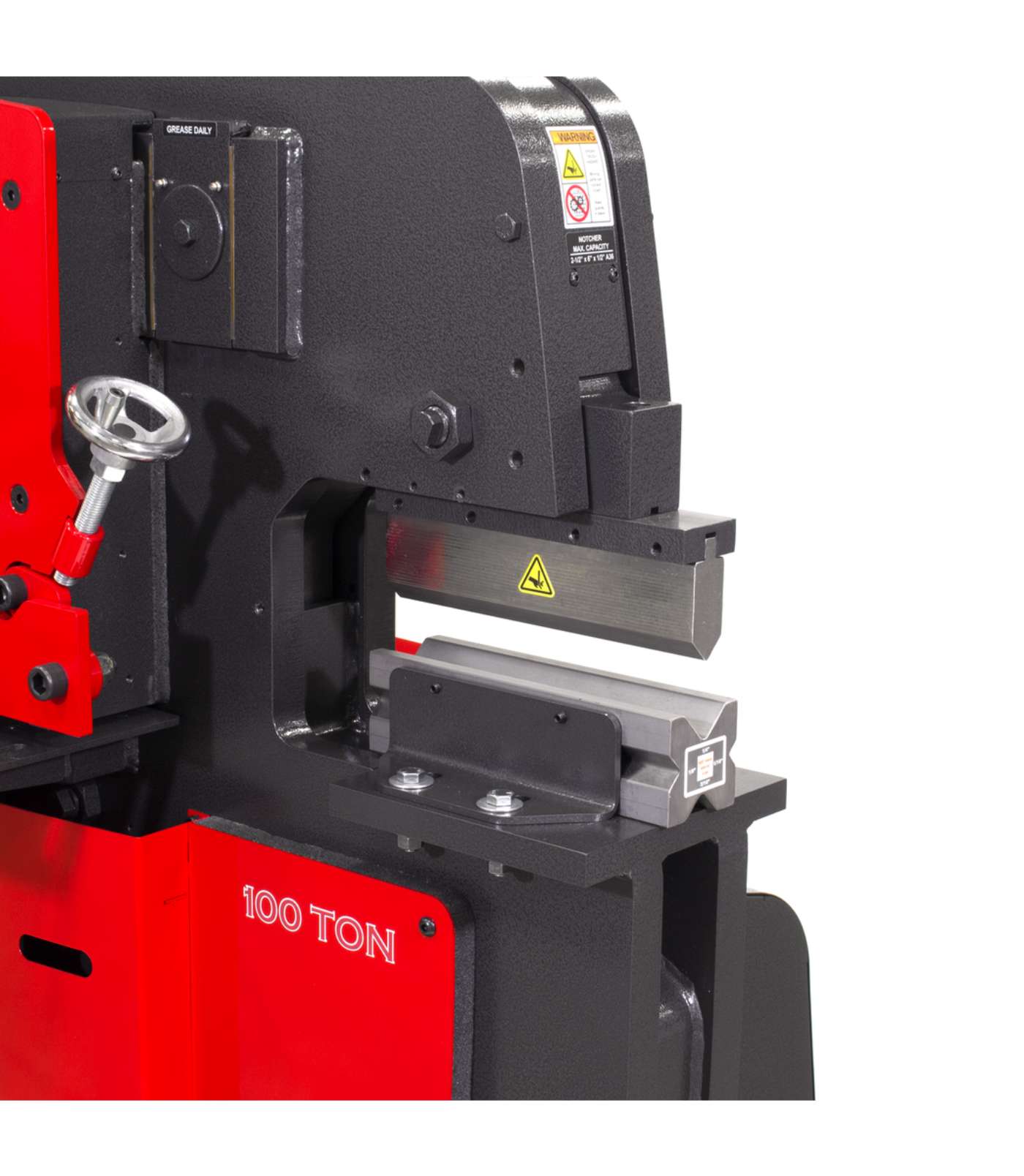

EDWARDS 12" Brake w/ 4-Way Die - ED9-AC1035

• Easily create repeatable bends when paired with the Press Brake Back Gauge.
• Fabricate brackets, frames, pans, and tanks with this Brake with 4-Way Die.
• Includes a standard punch that allows 1/16", 1/8", 3/16" and 1/4" material to be formed to a 90° angle.

What our Experts Think

• Increased Bending Capacity
  The 12" brake offers extended width for handling larger materials, making it ideal for more demanding fabrication jobs.
• Versatile 4-Way Die System
  Multiple bending options in one tool reduce downtime and eliminate frequent die changes—perfect for busy workshops.
• Precision & Consistency
  Delivers clean, accurate bends with repeatable results, helping maintain high-quality output across production runs.
• Seamless Machine Integration
  Built specifically for Edwards ironworkers, ensuring a secure fit and optimal performance without complicated adjustments.
• Heavy-Duty Reliability
  Rugged construction stands up to high-tonnage use, providing long-term durability in industrial settings.

Q&A

Maintenance Tips

• Clean After Each Operation: Remove metal shavings and debris to prevent surface scoring and maintain smooth bending.
• Lubricate Contact Surfaces: Apply light machine oil to dies, punch, and pivot points to reduce friction and wear.
• Inspect Punch & 4-Way Die: Regularly check for wear, cracks, or deformation to ensure accurate 90° bends on 1/16"–1/4" material.
• Check Alignment Frequently: Proper die and punch alignment is critical for repeatable bends and reduced material waste.
• Tighten Mounting Hardware: Ensure brackets and bolts are secure to avoid vibration and misalignment during operation.
• Prevent Rust & Corrosion: Store in a dry environment and apply anti-corrosion coating when not in use.
• Verify Stroke Control Settings: Consistent stroke control improves repeatability and protects tooling from overload.
