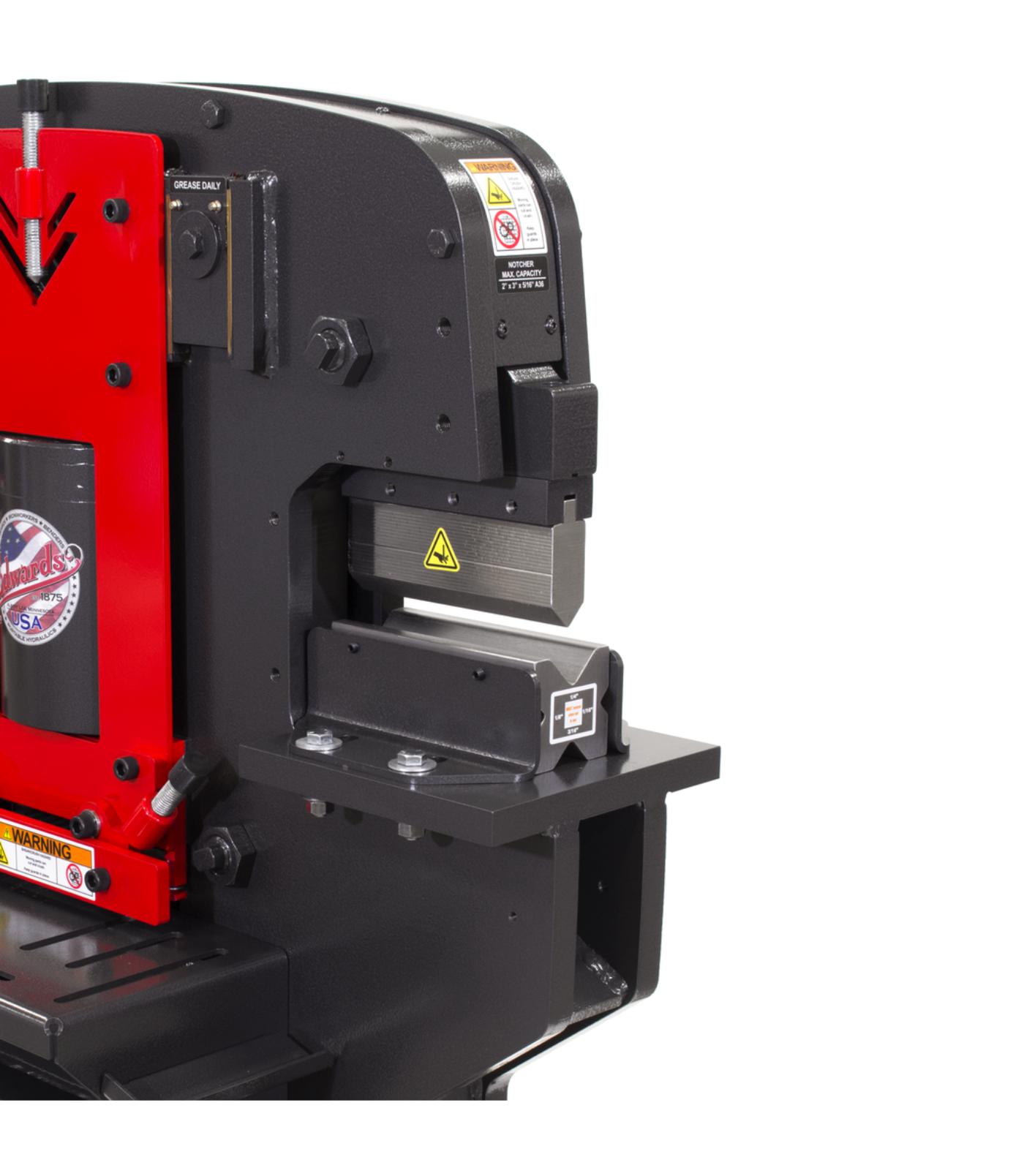

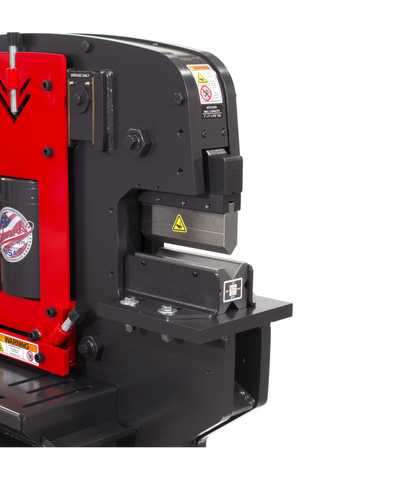

EDWARDS 8" Brake w/ 4-Way Die - ED9-AC1034
Fabricate brackets, frames, pans and tanks with this Brake with 4-Way Die. Includes a standard punch that allows 1/16", 1/8", 3/16" and 1/4" material to be formed to a 90° angle. Easily create repeatable bends when paired with the Press Brake Back Gauge.
Features
- Easily create repeatable bends when paired with the Press Brake Back Gauge.
- Fabricate brackets, frames, pans, and tanks with this Brake with 4-Way Die.
- Includes a standard punch that allows 1/16", 1/8", 3/16" and 1/4" material to be formed to a 90° angle.
What our Experts Think
-
Compact Precision Bending: The 8" brake is ideal for smaller, detailed fabrication work—delivering accurate, repeatable bends for brackets, frames, and panels.
-
4-Way Die Versatility: Equipped with a multi-position die, allowing you to handle 1/16", 1/8", 3/16", and 1/4" material thicknesses without switching tooling.
-
Consistent 90° Bends: Includes a standard punch designed for clean, uniform 90-degree bends—perfect for production consistency.
-
Repeatable Results: Works seamlessly with a press brake back gauge to ensure high repeatability and reduced operator error.
-
Wide Ironworker Compatibility: Designed for multiple Edwards ironworker tonnages, making it a flexible addition to existing setups.
-
Quick Mounting System: Bolt-on design allows fast installation and minimal downtime when switching operations.
-
Built for Daily Shop Use: Heavy-duty construction ensures durability under continuous industrial workloads.
Q&A
Q: What is the EDWARDS 8" Brake used for?
A: It’s designed for precision bending of metal up to 8 inches wide, ideal for fabricating brackets, frames, pans, and tanks.
Q: What materials and thicknesses can it handle?
A: It forms 1/16", 1/8", 3/16", and 1/4" material to a 90° angle using the included punch and 4-way die.
Q: What is the benefit of the 4-way die?
A: The 4-way die provides multiple bending options in one tool, improving flexibility and reducing setup time.
Q: Is it compatible with Edwards Ironworkers?
A: Yes, it’s designed to work with a wide range of Edwards Ironworkers, making it a versatile attachment for metal fabrication setups.
Q: Can it produce consistent, repeatable bends?
A: Yes, it delivers precise and repeatable bends, especially when paired with a press brake back gauge.
Q: Is installation easy?
A: Yes, the brake mounts securely to the ironworker table with simple bolt-on installation for quick setup.
Q: Who should use this product?
A: Ideal for metal fabricators, workshops, and industrial users needing accurate, repeatable bending in a compact 8" format.
Q: Why choose the EDWARDS AC1034 Brake?
A: It offers durability, precision bending, and multi-function capability—making it a reliable solution for professional metalworking applications.
Maintenance Tips
-
Clean After Each Use – Remove metal shavings and debris to maintain smooth, accurate bends and prevent die damage.
-
Lubricate Contact Surfaces – Apply light oil to punch, die, and pivot areas to reduce friction and extend tool life.
-
Inspect Punch & Die Edges – Check for wear, cracks, or rounding to ensure consistent 90° bending across 1/16”–1/4” materials.
-
Verify Alignment Regularly – Ensure proper alignment with the ironworker to maintain repeatable bending accuracy.
-
Tighten Mounting Hardware – Secure bolts and brackets to prevent vibration and misalignment during operation.
-
Prevent Rust & Corrosion – Store in a dry environment and apply anti-corrosion coating when idle.
-
Use Correct Material Capacity – Avoid exceeding thickness limits to protect tooling and maintain precision bends.
