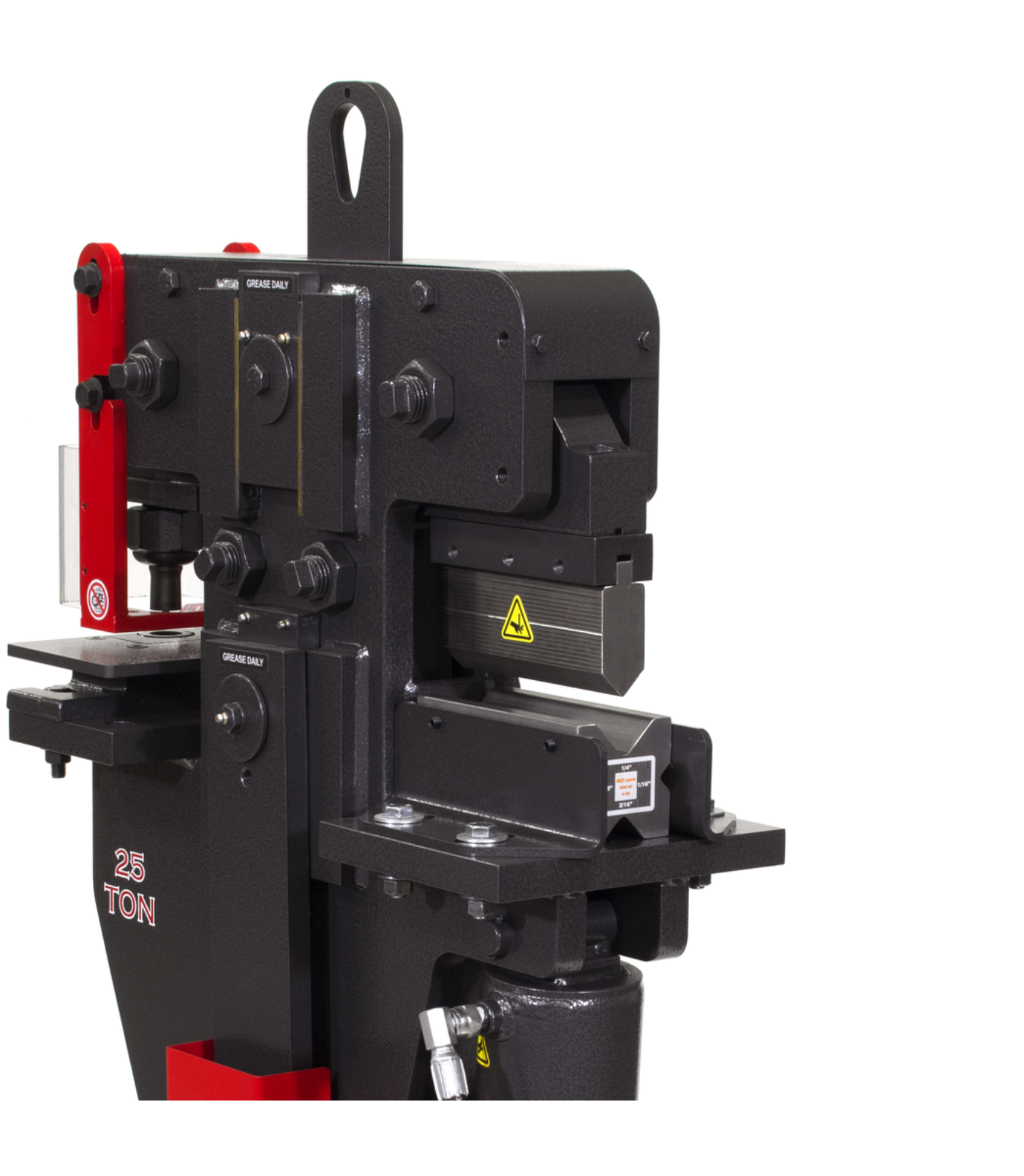

EDWARDS 7" Brake w/ 4-Way Die - ED9-AC1033

• Compatible with all Edwards Ironworkers.
• Easily create repeatable bends when paired with the Press Brake Back Gauge.
• Fabricate brackets, frames, pans, and tanks with this Brake with 4-Way Die.
• Includes a standard punch that allows 1/16", 1/8", 3/16" and 1/4" material to be formed to a 90° angle.

What our Experts Think

• Versatile Metal Brake Tooling — the EDWARDS 7" Brake w/ 4‑Way Die (ED9‑AC1033) lets you form 1/16", 1/8", 3/16", and 1/4" material to precise 90° bends, ideal for brackets, pans, frames and tanks.
• Compact & Compatible — designed for use with all Edwards Ironworkers, giving smaller machines bending capability without extra equipment.
• 4‑Way Die Flexibility — single die block supports multiple material thicknesses, reducing tool changes and speeding setup.
• Repeatable, Accurate Bends — works with the ironworker’s electric stroke control (and optional back gauge) for consistent bend quality batch to batch.
• Rugged Shop‑Ready Build — USA‑made construction stands up to frequent use in fabrication environments.
• Great for Fabrication Work — ideal for metalworking shops doing light to medium bending tasks as part of assembly and fabrication.

Q&A

Q1: What is the ED9‑AC1033 Brake with 4‑Way Die?
A: It’s a metal forming brake attachment for ironworkers that lets you bend sheet and plate stock up to 7″ wide to 90° angles using a versatile four‑way die.

Q2: What material thickness can it bend?
A: The included four‑way die supports bends in 1/16″, 1/8″, 3/16″, and 1/4″ material thicknesses for repeatable forming work.

Q3: What does “4‑way die” mean?
A: The four‑way die provides four different bending channels in one unit, letting you quickly switch between thicknesses and bend configurations without changing dies.

Q4: What applications is it best for?
A: Ideal for fabricating brackets, frames, pans, channels, and tanks, especially where precise 90° bends are needed.

Q5: Which machines is it compatible with?
A: Designed to work with Edwards ironworkers of various tonnages — simply mount in a compatible workstation using the ironworker’s power and stroke control.

Q6: How does it improve workflow?
A: It provides consistent, repeatable bends with minimal setup when used with an ironworker’s electric stroke control and optional back gauge.

Q7: Does it include tooling?
A: Yes — standard punch and the 4‑way die are included in the assembly for immediate bending tasks.

Q8: Is it suitable for industrial use?
A: Absolutely — built sturdy with heavy‑duty components for shop‑level metal forming operations.

Q9: What size workpieces does it handle?
A: Up to ~7″ wide bending capacity — excellent for small to medium sheet or plate bends.

Q10: What’s the core benefit of this brake kit?
A: Adds a compact, versatile bending station to your ironworker, boosting fabrication flexibility and precision without separate press brakes.

Maintenance Tips

• Clean After Use: Wipe the die, clamping surfaces, and bending areas to remove metal shavings and dust — prevents surface wear and ensures cleaner bends.
• Lubricate Moving Parts: Apply light machine oil to pivot points, die holders, and adjustment screws to reduce friction and extend tool life.
• Inspect Dies & Clamps: Regularly check the 4‑way die and clamping hardware for wear, chips, or deformation; replace worn parts to maintain accurate bends.
• Check Alignment: Ensure the die sections and backstops are aligned squarely before bending to achieve consistent angles.
• Tighten Fasteners: Periodically verify bolts and locking hardware are secure to keep the brake rigid under load.
• Prevent Corrosion: Store in a dry area and apply a rust inhibitor on exposed steel surfaces when idle
