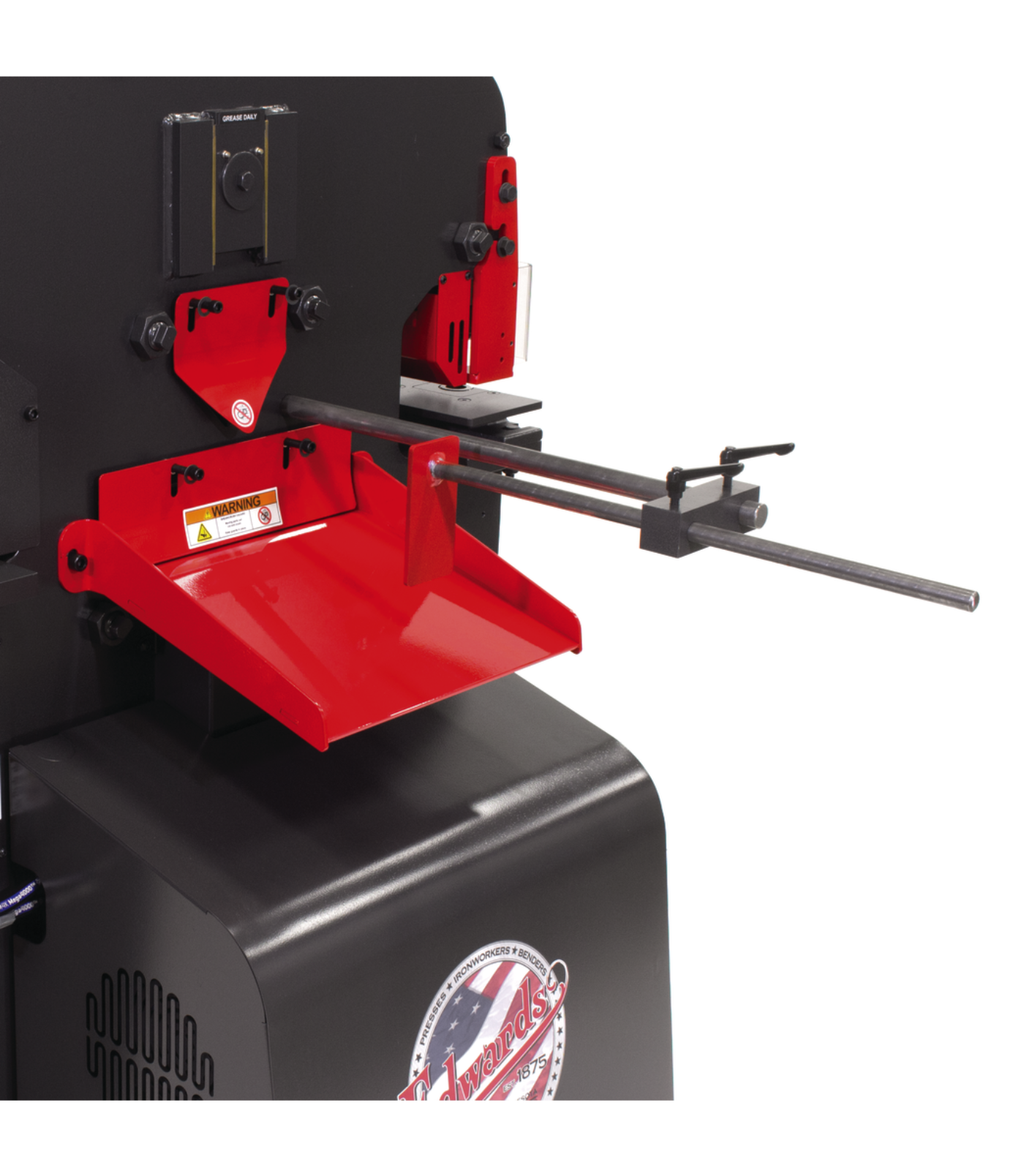

EDWARDS 48" Back Gauge - ED9-AC1009

• Positive stop attachment fitted to the back of the Ironworker ensures accurate shearing.
• Speed up production on repeatable cuts by providing an adjustable stop for the Flat Bar Shear and Angle Shear.
• Induction hardened for increased strength.
• Tooth matched at the weld to eliminate blade ticking.
• Greenwood blade does a great job when cutting moist wood.

What our Experts Think

• Precision Positioning Made Easy
  The 48" back gauge ensures accurate, repeatable measurements—ideal for achieving consistent cuts and bends every time.
• Boosts Productivity
  Speeds up workflow by reducing manual measuring and marking, allowing operators to work faster with fewer errors.
• Seamless Edwards Compatibility
  Designed to integrate perfectly with Edwards ironworkers, delivering stable performance without complex setup.
• Extended Measuring Capacity
  The 48" range supports larger workpieces, making it a great fit for diverse fabrication tasks.
• Durable, Shop-Ready Build
  Built to withstand daily industrial use while maintaining alignment and accuracy over time.

Q&A

Maintenance Tips

• Clean Guide Rails Daily: Remove metal dust and debris to maintain smooth sliding and precise positioning.
• Lubricate Moving Components: Apply light oil to rails and adjustment mechanisms to reduce friction and wear.
• Check Alignment & Calibration: Regularly verify stop accuracy to ensure consistent, repeatable cuts.
• Tighten Fasteners & Stops: Secure all bolts and locking components to prevent shifting during operation.
• Inspect for Wear & Damage: Monitor induction-hardened surfaces and stop edges for deformation or inaccuracies.
• Prevent Rust & Corrosion: Store in a dry environment and apply protective coating when idle.
