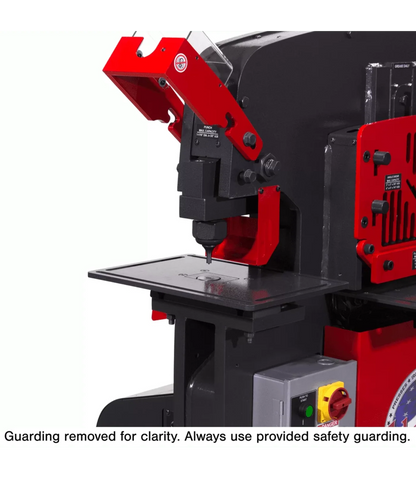

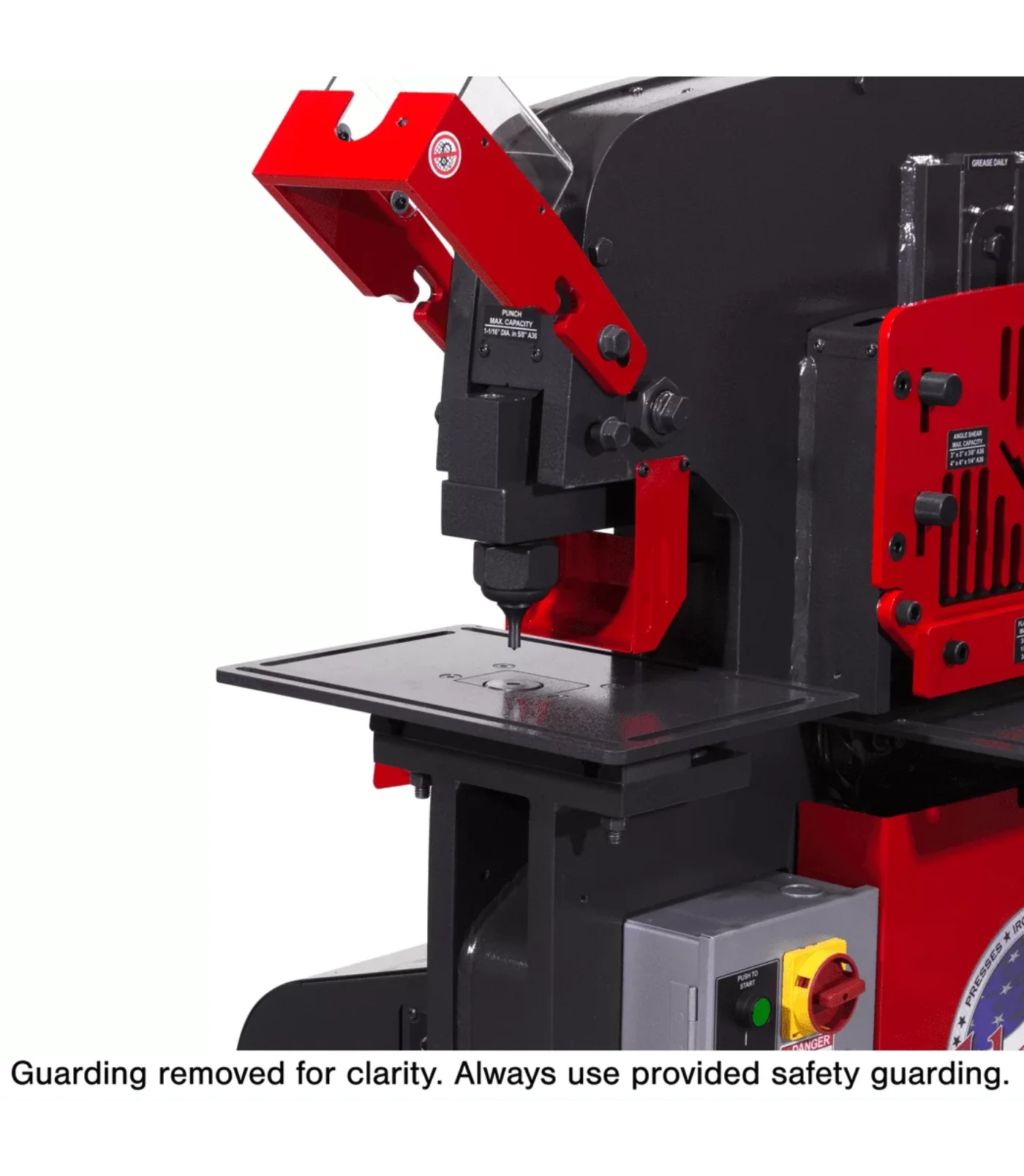

Add speed an precision to your Punch Workstation. Compatible with the Edwards 40, 50, 55, 60, 65, 75, and 100 Ton Ironworkers, this 3/8" x 12" x 16" table bolts to Standard or Oversize Pedestal Die Tables and includes adjustable fences and handles to quickly and easily guide your material for repeatable actions.

Features

• 3/8" thick, 12" x 16" table that adds precision to your Punch Workstation.
• Adjustable fences and handles quickly and easily guide your material for perfect repeatable actions.
• Compatible with both Standard and Oversize Pedestal Die Tables.
• Custom table sizes and additional fences also available.
• Induction hardened for increased strength.
• Tooth matched at the weld to eliminate blade ticking.
• Greenwood blade does a great job when cutting moist wood.

What our Experts Think

• Precision alignment for repeat punching
  The EDWARDS Gauging Table Kit (July 2017 & Older) – ED9‑AC0902 adds a 3/8″ thick, 12″ × 16″ work surface that helps guide material accurately — ideal for repeatable punching tasks on ironworkers.
• Smooth material handling with adjustable fences
  Adjustable fences and handles let operators quickly position and clamp stock, reducing setup time and improving consistency across batches.
• Broad compatibility with earlier models
  Works with Edwards 40, 50, 55, 60, 65, 75, and 100 ton ironworkers (2017 & older) and bolts to both standard and oversize pedestal die tables, extending utility on legacy equipment.
• Heavy‑duty, shop‑ready design
  Sturdy construction withstands regular use in fabrication environments and helps keep material from shifting during punching cycles.
• Boosts productivity without complex tooling
  By simplifying alignment and repeat positioning, this kit helps reduce rework and increases throughput on punched parts.

Q&A

Maintenance Tips

• Clean After Use: Remove metal shavings, dust, and oil to maintain accurate measurements and surface integrity.
• Inspect for Wear: Check for cracks, bending, or misalignment, especially after heavy-duty use.
• Lubricate Moving Parts: Apply light oil to adjustable fences, handles, and guides for smooth operation.
• Tighten Hardware: Periodically check and secure bolts, clamps, and mounting components.
• Prevent Rust: Store in a dry environment and lightly oil exposed metal surfaces.
• Verify Calibration: Recheck fence and gauge alignment for consistent, repeatable accuracy.
