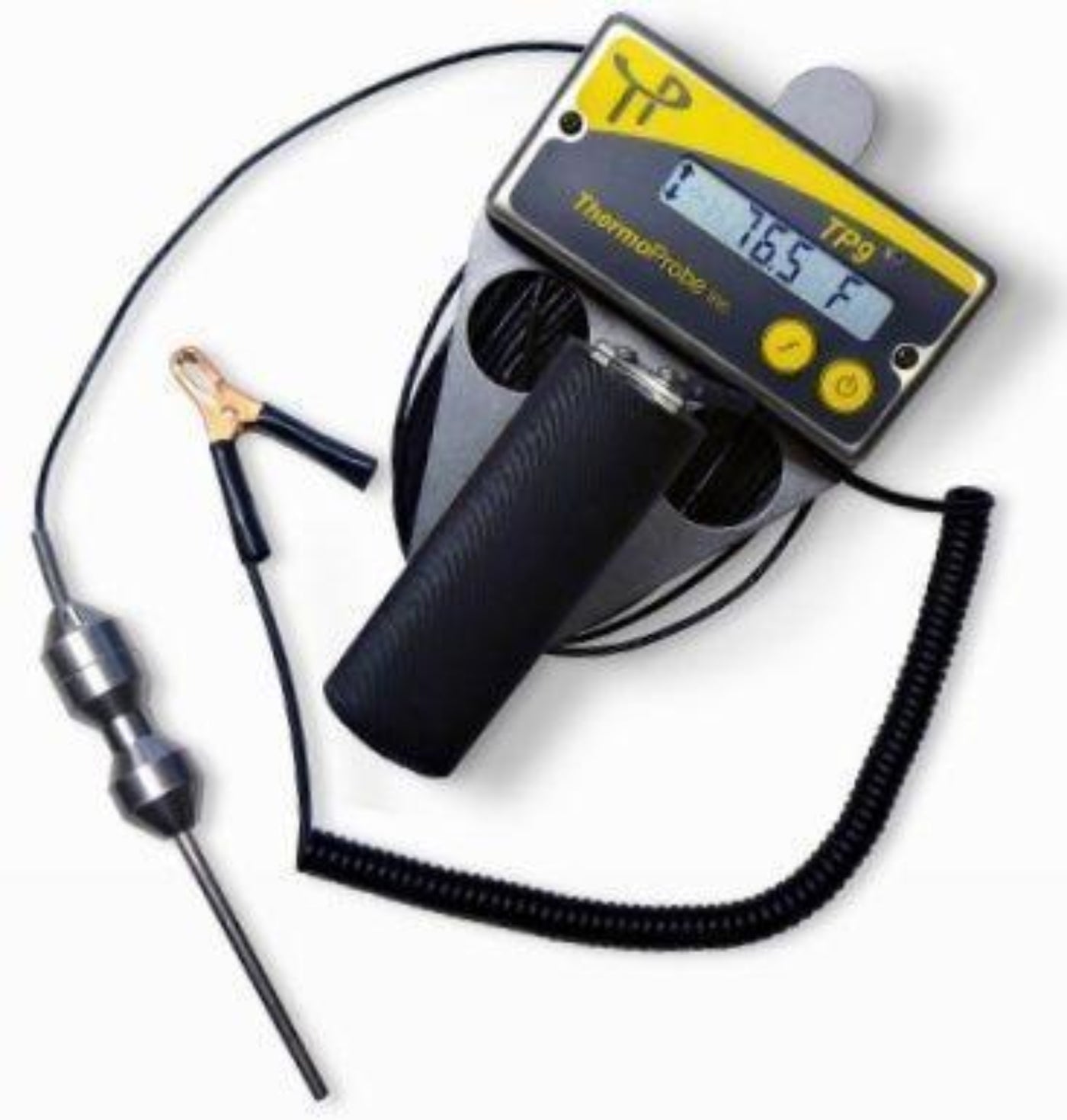

ThermoProbe TP9A Petroleum Gauging Thermometer - TP9A-075-SW-SM
The TP9A employs the proven RTD design that has been used in the TP7 and TP8 for many years. A sealed industrial quality overlay provides a user interface that is easy to use with gloves. A stainless steel enclosure protects the circuit board and large LCD from penetration by impact, water and reactive liquids.
The new TP9 circuit board is an evolutionary step up from our highly accurate, reliable and successful TL1 laboratory thermometer. The Power Button’s primary function powers the instrument for intervals of about 20 minutes since the last button was accessed. The Power Button can also be used to conserve power and clear the memory, or to make adjustment while in calibration mode. A simple menu operation is displayed by holding the Function Button, and alternately functions to allow adjustments in the calibration mode. Arrows on the left side of the display show the direction of the temperature reading and whether stability has been reached. At the user’s discretion stabilized temperatures can be logged at numerous liquid levels for a running average and later displayed for the user’s documenting purposes. But this feature never interferes with simply getting an accurate temperature reading.
To endure the environment and be intrinsically safe, the TP 9 is manufactured of materials, which are both immune to petrochemicals and are non-sparking. The enclosure is made of stainless steel. The probe assembly is constructed using non-stick cable and stainless steel sensor components.
What our Experts Think
-
Petroleum-Specific Accuracy – Designed for precise temperature measurement in fuel and storage tanks.
-
Rugged Construction – Stainless steel probe ensures durability in industrial environments.
-
Easy Installation & Use – Streamlined setup for efficient tank monitoring.
-
Quick, Reliable Readings – Rapid stabilization for accurate gauging.
-
Versatile Applications – Ideal for petroleum storage, distribution, and process control.
-
Trusted ThermoProbe Quality – Renowned for reliability, precision, and long-term performance.
Q&A
Q: What is the ThermoProbe TP9A-075-SW-SM?
A: A petroleum gauging thermometer designed for accurate tank temperature measurement in fuel and chemical storage.
Q: Why is it used for petroleum?
A: Calibrated for precise readings in hydrocarbon and flammable liquid storage tanks.
Q: How is it used?
A: Insert into storage tanks to monitor liquid temperature accurately and safely.
Q: Where is it used?
A: Ideal for fuel depots, chemical plants, and other petroleum storage applications.
Q: Why choose the ThermoProbe TP9A Series?
A: Trusted for precision, reliability, and safe operation in industrial petroleum environments.
Maintenance Tips
-
Clean Carefully: Wipe the stem with a soft, damp cloth; avoid harsh chemicals.
-
Calibration: Check calibration regularly to ensure accurate petroleum measurements.
-
Inspect for Damage: Examine the probe and casing for wear or residue.
-
Avoid Submersion: Do not immerse the thermometer in liquids; only wipe clean.
-
Check Connections: Ensure any fittings or mounts are secure for consistent readings.
-
Proper Storage: Store in a dry, cool place when not in use to maintain performance.
