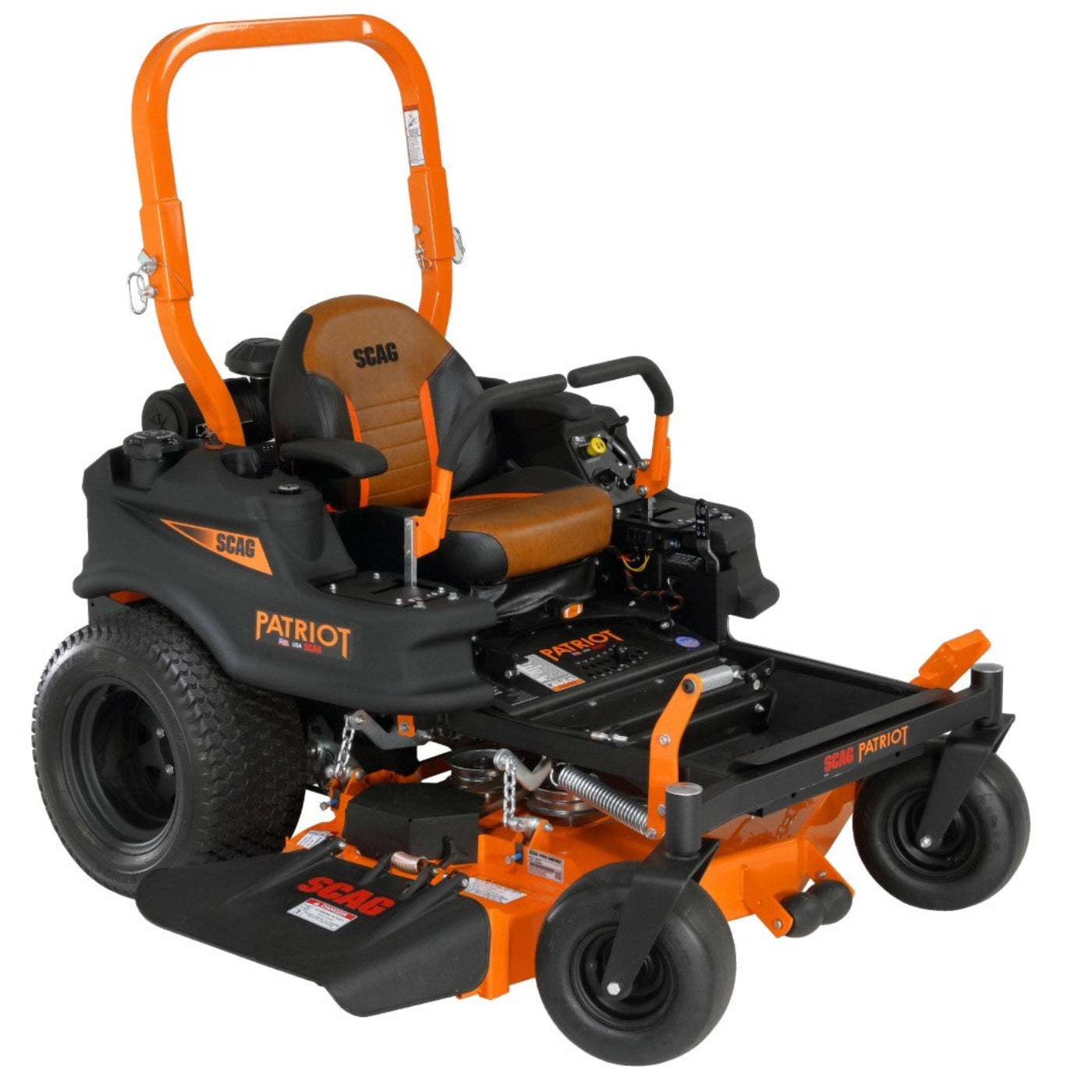

Scag Patriot Commercial Zero Turn Mower - 52in Hero Cutter Deck - 22hp Kawasaki - SPZ-52H-22FX
The Scag Patriot is a zero turn mower designed to meet the needs of lawn care professionals and serious homeowners. This mower features a 52in Hero Cutter Deck and is powered by a 22hp Kawasaki FX691 engine, making it capable of delivering high-quality cuts at higher speeds. The Patriot is built with a strong tubular-steel main frame and a hydro drive system, ensuring durability and smooth operation.
The Scag Patriot is equipped with several features that enhance its performance and comfort. It includes a foot-operated pedal for deck lift and a foot-operated brake with a park lock feature, allowing for easy operation without taking hands off the steering controls. The mower also features a torsion-spring suspension seat and an iso-mounted footplate for enhanced comfort during long hours of use.
Features
- Hero Cutter Deck: Deep, fully fabricated, and welded design handles lots of grass at higher speeds, providing an excellent quality-of-cut.
- Ogura PTO Clutch Brake: Strong, adjustable clutch with 108 ft. lb. of holding strength for reliable starting and stopping power.
- Hydro-Gear ZT-3100 Transaxles: Dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels.
- Tubular Steel Frame: High-strength steel frame for unmatched strength and longevity.
- Low-Maintenance Design: Fewer grease points increase operator convenience and ease-of-ownership.
- Suspension Seat: Torsion-spring suspension seat adjusts to each operatorĂąâŹâąs weight, providing superior comfort.
- Iso-Mounted Footplate: Rubber iso-mounted footplate for enhanced comfort.
- Foot-Pedal Parking Brake: Foot-operated parking brake with a disc-brake system and park lock feature.
- High-Strength Steel Cutter Blades: Stay sharp longer for a better-looking cut and reduced maintenance.
Specifications
| Model |
SPZ-52H-22FX |
| Deck Type |
Hero Cutter Deck |
| Deck Width |
52 in |
| Deck Construction |
Dual-plate cutter deck (2 steel plates + reinforcement plate at spindles) |
| Cutting Height |
1.5" to 5" (0.25" increments) |
| Deck Lift |
Foot-operated pedal |
| Engine |
Kawasaki FX691 |
| Horsepower |
22 HP |
| Drive System Type |
Hydro-Gear ZT-3100 Transaxle |
| Internal Pump |
10 cc |
| Internal Motor |
16 cc |
| Forward Ground Speed |
8.5 mph |
| Reverse Ground Speed |
5 mph |
What our Experts Think
-
Reliable 22HP Kawasaki Engine: Delivers consistent commercialâgrade power and smooth performance.
-
52â Hero Cutter Deck: Wide cutting width boosts productivity while maintaining a professional finish.
-
ZeroâTurn Maneuverability: Tight turning radius for easy navigation around obstacles and landscaping features.
-
Durable Commercial Build: Heavyâduty construction built to withstand rugged use.
-
Comfortable & Responsive Control: Stable platform and intuitive controls reduce operator fatigue.
-
Precision Cutting: Clean, even results across varied grass types and terrain.
-
ContractorâReady: Ideal for landscapers seeking efficiency, durability, and strong performance in one mower.
Q&A
Q: What type of mower is this?
A: Commercial-grade zero-turn mower designed for professional landscaping and large properties.
Q: What engine does it use?
A: Powered by a 22HP Kawasaki commercial-grade engine for reliable and consistent performance.
Q: What is the cutting width?
A: Features a 52-inch Hero Cutter deck for efficient mowing of medium to large areas.
Q: Is it suitable for commercial use?
A: Yes, built with heavy-duty construction for landscapers and commercial applications.
Q: Does it have zero-turn capability?
A: Yes, allows precise maneuvering around obstacles and tight spaces.
Q: Is it comfortable for long use?
A: Yes, ergonomic controls and stand-on design provide excellent visibility and operator comfort.
Q: What terrains can it handle?
A: Ideal for commercial lawns, estates, and moderately uneven terrain.
Maintenance Tips
-
Engine care: Check and change oil regularly; replace air and fuel filters for optimal 22HP Kawasaki performance.
-
Blade maintenance: Sharpen blades frequently; inspect for wear or damage.
-
Deck cleaning: Remove grass buildup after each use to prevent corrosion and maintain cutting efficiency.
-
Belts & pulleys: Inspect for wear, cracks, or looseness; replace as needed.
-
Tire check: Maintain proper pressure for stability and smooth zero-turn operation.
-
Fuel system: Use fresh fuel; avoid long-term storage in the tank.
-
Storage: Keep in a dry, covered area; protect from moisture and extreme weather.
