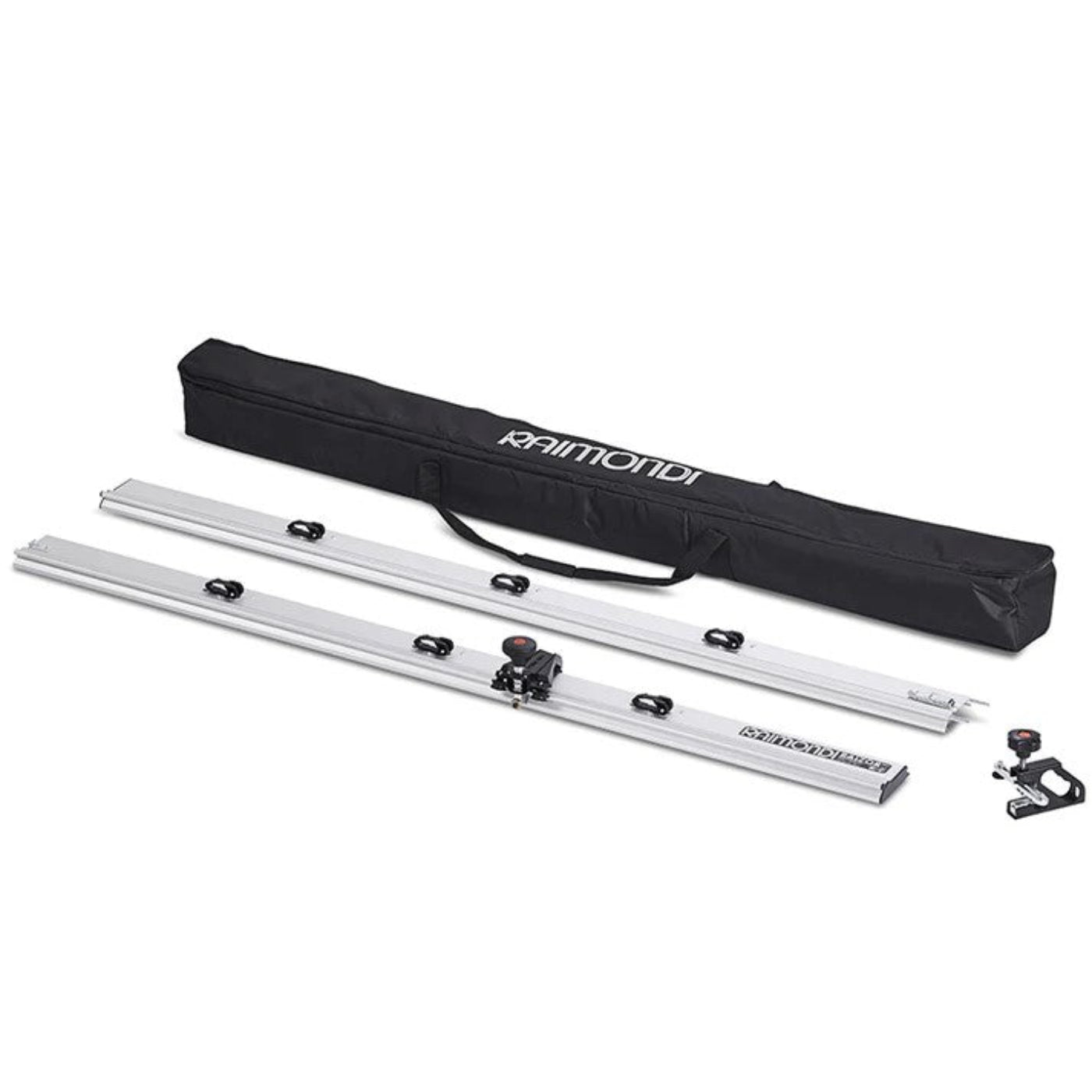

Raimondi Raizor MkII PLUS Large Format Tile Cutting System - TC10RMK2PLUS
Raimondi Raizor MkII PLUS system utilizes a titanium scoring wheel and sturdy rail system to score thin panel tiles and heavy duty pliers that will snap delicate material without damages. The rail system is equipped with suction cups that will keep your system attached without marking the material being cut. The modular design allows for extensions to be added for even larger tile.
Features
- Rail cutting system for large format tiles
-
*Not Compatible with the first-gen Raizor system (TC10RAIZOR)*
- Two lightweight, aluminum 5.2' (160 cm) rails easily connect together
- Three (3) stain-free suction cups on each rail will not mark delicate or expensive tile
- Suction cup handles perform a 180° movement and offer greater grip thanks to their double-lip profile
-
MkII PLUS scoring unit has four wheel bearings fitting snugly on either side of the rail for a smooth and steady scoring
- Scoring wheel easily adjusted with threaded knob on top
- The 3/4" (20 mm) titanium cutting wheel is equipped with an integrated bearing for maximum smoothness, extreme precision and effectiveness and easy and quick replacement
- Replacement scoring wheels also available (ref.)
- Premium pliers provided for max thickness of 1/8"-5/8" (3-15 mm) tile
- The padded bag protects the rails and allows for easy carrying and has an outside pocket for personal items and/or tools
What our Experts Think
-
Extended LargeâFormat Cutting: Engineered to cut tiles and slabs up to ~330âŻcm (10.8âČ) with precision, handling todayâs biggest formats with ease.
-
Premium Scoring & Breaking: Includes highâquality PREMIUM pliers for tiles 3â15âŻmm thick and a titaniumâcoated scoring wheel for smooth, accurate scoring and reduced chipping.
-
Stable SuctionâSecured Rails: Dual extruded aluminium guide rails with six dualâlip suction cups ensure the system stays locked in place for consistent, reliable cuts.
-
Increased Structural Rigidity: Reinforced rail profiles provide ~28% greater stiffness, reducing flex and improving cutting accuracy even on textured surfaces.
-
Portable & Jobsite Ready: Lightweight rail system and padded carrying bag make transport, setup, and storage fast and easy.
-
Expandable System: Optional extensions and power accessories (like PowerâRaizor units) allow longer cuts and angled/diamond blade cutting for advanced applications.
Q&A
Q: What is this tool used for?
A: Advanced cutting system designed for precise, clean cuts on large-format tiles and slabs.
Q: What size tiles can it handle?
A: Ideal for oversized ceramic, porcelain, and natural stone tiles, including extra-large slabs.
Q: Is it portable?
A: Yes, modular and lightweight design allows easy transport and on-site setup.
Q: What is the cutting mechanism?
A: Smooth sliding rail with reinforced scoring wheel for accurate, effortless cutting.
Q: Who is this cutting system ideal for?
A: Professional tilers, contractors, and installers working with large or heavy-format tiles requiring precision.
Maintenance Tips
- Wipe frame, rails, and cutting head with a soft, damp cloth after each use.
- Lubricate rails and moving parts periodically with light machine oil.
- Inspect cutting wheel for wear or damage and replace as needed.
- Tighten all bolts and screws regularly to maintain cutting precision.
- Store in a dry area to prevent rust and prolong system lifespan.
