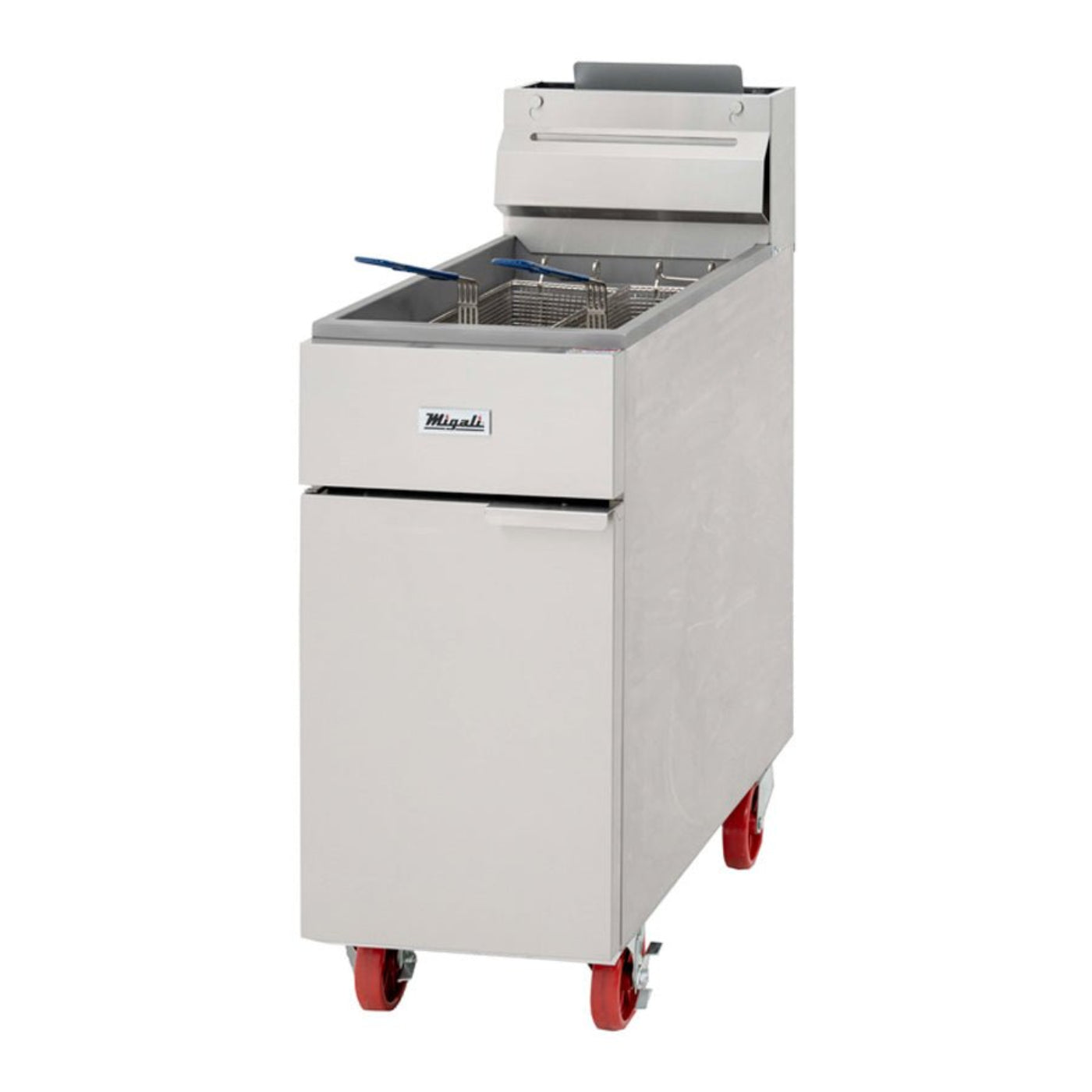

Migali C-F40-LP Liquid Propane 40 lb. Floor Fryer – 90,000 BTU - C-F40-LP
Introducing the Migali C-F40-LP Commercial Propane Deep Fryer: A High-Efficiency Solution for Your Kitchen
Elevate your kitchen's frying capabilities with the Migali C-F40-LP, a commercial propane deep fryer designed to meet the high demands of professional kitchens. Ideal for cooking breaded foods that produce excess crumbs, this fryer features a sophisticated tube-type burner system with a dedicated cold zone. This design allows sediment to settle away from the heat, reducing the risk of burning and extending oil life. The 90,000 BTU commercial gas deep fryer is perfect for high-volume frying and ensures consistent cooking performance in any environment.
What our Experts Think
-
High Output & Fast Recovery: Three 30,000 BTU burners deliver a total of 90,000 BTU for quick heating and consistent performance.
-
Large-Capacity Vat: 40 lb oil capacity supports high-volume frying, ideal for busy commercial kitchens.
-
Precise Temperature Control: Electromechanical thermostat adjusts from 200°F to 400°F with a high-limit safety cutoff at 450°F.
-
Cold Zone Design: Captures crumbs and debris to preserve oil quality and extend usable life.
-
Safety & Venting: Built-in flue deflector directs heat and fumes upward, reducing kitchen heat load.
-
Easy Maintenance: Full-port drain valve with extension for fast oil removal and included wire mesh baskets.
-
Durable Construction: Stainless-steel tank and exterior resist corrosion and withstand daily heavy use.
-
Mobility: Equipped with casters for easy repositioning or cleaning.
-
Overall Verdict: A robust, high-capacity propane fryer that balances power, control, and reliability — perfect for restaurants, food trucks, and high-throughput frying operations.
Q&A
Q: What is the total heat output?
A: 90,000 BTU, with three 30,000 BTU vertical burners.
Q: What is the oil capacity?
A: Holds up to 40 lbs of frying oil.
Q: What temperature range can it reach?
A: Electro-mechanical thermostat ranges from 200 °F to 400 °F, with a high-limit control up to 450 °F.
Q: What is the construction like?
A: All-stainless-steel tank and cabinet, with built-in cold zone, stainless heater exchanger, and baffle to extend oil life.
Q: How does it ignite?
A: Manual pilot ignition system.
Q: How is grease and oil drained?
A: Equipped with a full-port 1‑1/4″ drain valve for quick and complete oil removal.
Q: Does it have mobility features?
A: 6″ casters (two locking) for easy movement.
Q: What gas connection does it require?
A: ¾″ NPT liquid propane connection at the rear.
Q: What safety features does it include?
A: Auto-reset high-limit control, open-flame protection, and cold zone to prevent overheating.
Q: Why choose this fryer?
A: Its high BTU output, durable stainless construction, large oil capacity, precise thermostat, and safety controls make it ideal for busy commercial kitchens needing consistent, heavy-duty frying.
Maintenance Tips
-
Filter or change frying oil regularly to maintain food quality and prevent buildup on heating elements.
-
Clean the fryer baskets and interior daily with warm, soapy water to remove grease and debris.
-
Empty and clean the fry pot after each use to prevent carbon buildup and maintain 90,000 BTU performance.
-
Inspect burners and gas connections weekly for clogs or leaks; test with a safe soapy water solution.
-
Wipe the exterior stainless steel weekly with a soft, non-abrasive cloth to preserve finish.
-
Avoid harsh chemicals or steel wool on cooking and exterior surfaces.
-
Check thermostat and safety controls periodically to ensure accurate temperature regulation.
-
Ensure proper ventilation around the fryer to maintain safe operation and prevent overheating.
