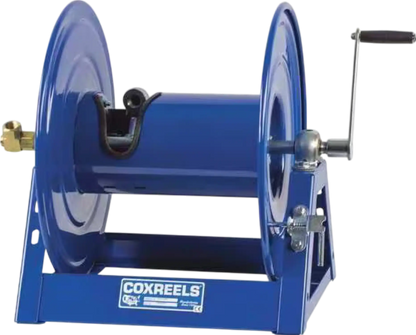

Coxreels Hand Crank Hose Reel 1/2" x 200' Hose Capacity New - HP1125-4-200

Coxreels  Hand Crank Hose Reel 1/2" x 200' Hose Capacity New - HP1125-4-200

Coxreels 1125 Series high pressure hose reel's features meet industry professional's demands. The HP1125 features a sturdy one piece all welded "A" frame base, low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap making it the industry's preferred design.

What our Experts Think

• Reliable, simple manual hose management
  The Coxreels HP1125‑4‑200 Hand Crank Hose Reel pairs a 1/2″ x 200′ capacity with a smooth hand crank — perfect for workshops, garages, farms, and service bays that need dependable, low‑cost hose control without power requirements.
• Smooth, adjustable crank operation
  Expert‑rated hand crank rewind offers consistent rewind speed and control, reducing tug‑back and operator fatigue during frequent use.
• Built tough for daily use
  Heavy‑gauge, welded steel frame and drum plus quality bearings ensure durability and long service life in high‑use environments — a step above basic reels.
• Flat wraps protect your hose
  Coxreels’ open‑drum, low‑profile design promotes flat, even hose wraps that minimize kinks and wear — extending the life of your hose.
• Compact & versatile mounting
  Designed for floor, wall, or vehicle deck mounting, giving flexibility in garages, shops, fleets, and outdoor service areas.
• High pressure capability
  Rated for up to 3,000 PSI with quality seals — suitable for air, water, and many fluid applications.
• Easy installation & maintenance
  Simple bolt‑on mounting and accessible lubrication points make setup and upkeep quick — saving time for busy technicians and operators.

Q&A

Q: What hose capacity and size does this reel support?
A: It holds up to 200 ft of 1/2″ I.D. hose (hose sold separately).

Q: What is the maximum pressure rating?
A: Rated up to 5,000 psi for high‑pressure air, water, or oil hose applications.

Q: How is the reel operated?
A: Features a solid steel hand crank with smooth round handle and front bevel gearing for easy manual retraction.

Q: What construction and durability features does it have?
A: Built with a one‑piece welded steel “A”‑frame, CPC powder‑coat finish, and rolled ribbed discs for strength, durability, and corrosion resistance.

Q: What kind of swivel and hose wrap design does it use?
A: Includes an external 90° full‑flow NPT swivel (electroless nickel‑plated steel) and an open drum slot design for a non‑crimping, smooth hose wrap.

Q: Is the reel easy to mount and maintain?
A: Yes — permanently lubricated self‑aligning pillow block bearings for smooth rotation and it can be mounted on floor, wall, or vehicle.

Maintenance Tips

• Keep clean: Wipe down the reel frame, spool, and hose after use to prevent dirt buildup that can cause binding.
• Lubricate moving parts: Grease swivel seals, crank handle shaft, and bearings every 3–6 months to ensure smooth cranking and reduce wear.
• Inspect hose regularly: Check for kinks, cuts, or abrasions; repair or replace damaged hose to maintain flow and prolong reel life.
• Check hardware tightness: Periodically tighten bolts, nuts, and mounting brackets to prevent vibration‑related loosening.
• Ensure even spooling: Guide hose evenly on the reel during rewind to avoid binding and uneven strain.
• Protect from elements: Store in a covered area or use a protective cover if outdoors to reduce corrosion and UV damage.
• Test rotation: Crank fully in/out occasionally to identify stiffness or resistance early.
