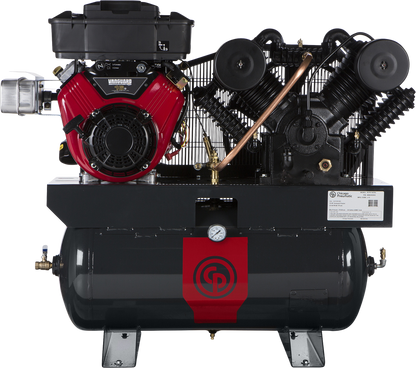

Chicago Pneumatic RCP-C1630G Air Compressor 16HP 30 Gal. Two Stage Gas Iron Series New - 8090300982

Chicago Pneumatic RCP-C1630G Air Compressor 16HP 30 Gal. Two Stage Gas Iron Series New - 8090300982

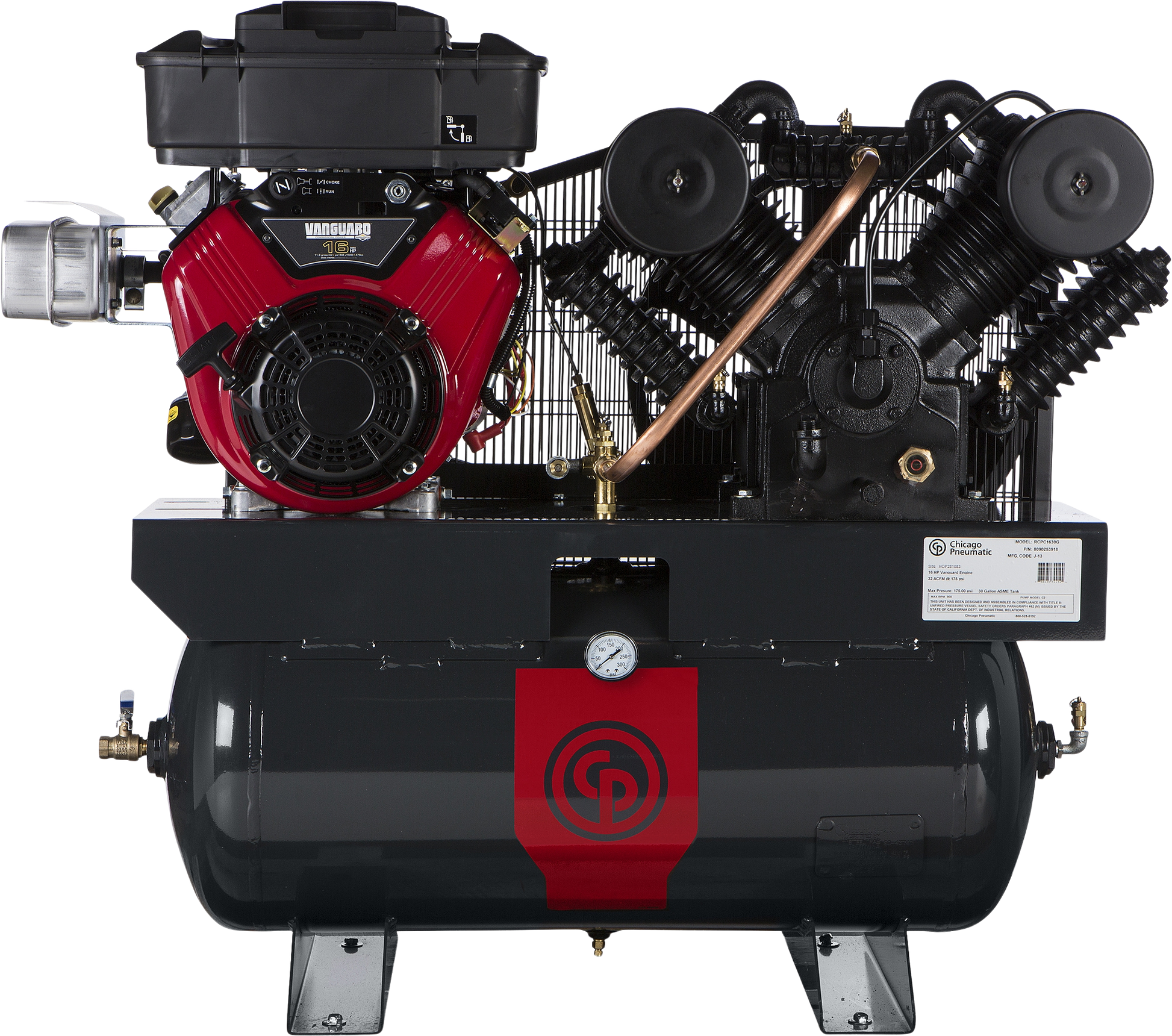

Chicago Pneumatic's RCP Iron Series air compressors feature all cast iron pumps. This gas driven compressor is equipped with a 16 HP Briggs Vanguard engine and features electric start and recoil start. This compressor delivers 35 CFM at 100 psi. All units are 100% tested at full pressure.

What our Experts Think

• Heavy‑duty two‑stage gas power
  The Chicago Pneumatic RCP‑C1630G Air Compressor 16HP 30 Gal. Two Stage Gas Iron Series (8090300982) combines a 16 HP Briggs‑Vanguard gasoline engine with a two‑stage cast iron pump, giving you strong compressed air performance in environments without electricity — great for job sites, remote work, or mobile service rigs.
• Impressive airflow & pressure
  Delivers up to ~35 CFM @ 100 PSI with a maximum 175 PSI, providing quick recovery and steady air for tools and pneumatic systems, even under heavy demand.
• Rugged, durable construction
  Built with cast iron cylinders and pump components, this compressor is designed for long life and better heat dissipation, supporting frequent or tough use.
• Versatile start options & mobility
  Features electric start plus recoil start and a 12 V alternator, so you can fire it up reliably on job sites or in remote locations.
• Compact yet substantial tank
  The 30 gallon ASME‑certified horizontal tank strikes a balance between portability and storage capacity, reducing cycling while still being manageable for truck, trailer, or shop use.
• Service‑ready design
  Includes fully enclosed belt guard, ASME safety valves, and common service points that simplify maintenance and keep downtime low.
• Portable premium performance
  Gas‑powered freedom with industrial‑grade reliability makes this ideal for contractors, outdoor work, and applications where electricity isn’t reliable or available

Q&A

Q1: What type of air compressor is this?
A: It’s a gas‑powered, two‑stage piston air compressor with a 16 HP Briggs & Vanguard engine and a 30‑gallon horizontal tank, built for heavy‑duty and portable applications.

Q2: What power and starting features does it offer?
A: The compressor has a 16 HP Briggs & Vanguard gas engine with both electric start and recoil (pull) start, offering reliable operation in remote job sites without electricity.

Q3: How much compressed air does it deliver?
A: It produces around 35 ACFM at 100 PSI and up to ~32 ACFM at 175 PSI, giving plenty of airflow for large pneumatic tools and continuous use.

Q4: What max pressure does this compressor reach?
A: Maximum output pressure is 175 PSI, making it suitable for demanding industrial tools and spray systems.

Q5: What construction and durability features does it include?
A: The unit uses an all‑cast‑iron, two‑stage pump with a fully enclosed belt guard, ASME‑certified tank and safety valves, and a splash‑lubricated oil system for long life.

Q6: Is it suitable for rugged, outdoor use?
A: Yes — the gas engine and cast iron design make it ideal for construction sites, service trucks, remote jobs, and heavy‑duty shop environments where electricity isn’t available.

Q7: What size is the tank and how portable is it?
A: It has a 30‑gallon ASME horizontal tank that balances airflow capacity with portable size for transport and job site mobility.

Maintenance Tips

• Drain tank daily: Open the EZ‑pull drain valve after each use to remove moisture and prevent internal corrosion.
• Change oil regularly: Use appropriate engine and compressor oil; check levels often and replace per hours/recommendations to protect the pump and engine.
• Inspect and clean air filter: Check the intake filter frequently and clean or replace it to keep airflow optimal and prevent dirt from entering the pump.
• Check belts and pulleys: Examine belt tension and condition; tighten or replace worn or cracked belts to ensure consistent drive power.
• Monitor engine components: Inspect spark plug condition, fuel quality, and cooling fins; clean cooling areas to prevent overheating.
• Inspect safety controls: Test the pressure switch and safety valves periodically to ensure proper cutoff and safe pressure regulation.
• Secure fittings and hoses: Check all air fittings, hoses, and connections for leaks; tighten or replace as necessary to maintain performance.
• Annual professional service: Have a qualified technician inspect the pump, engine, and overall system for wear, compression health, and efficient operation.
