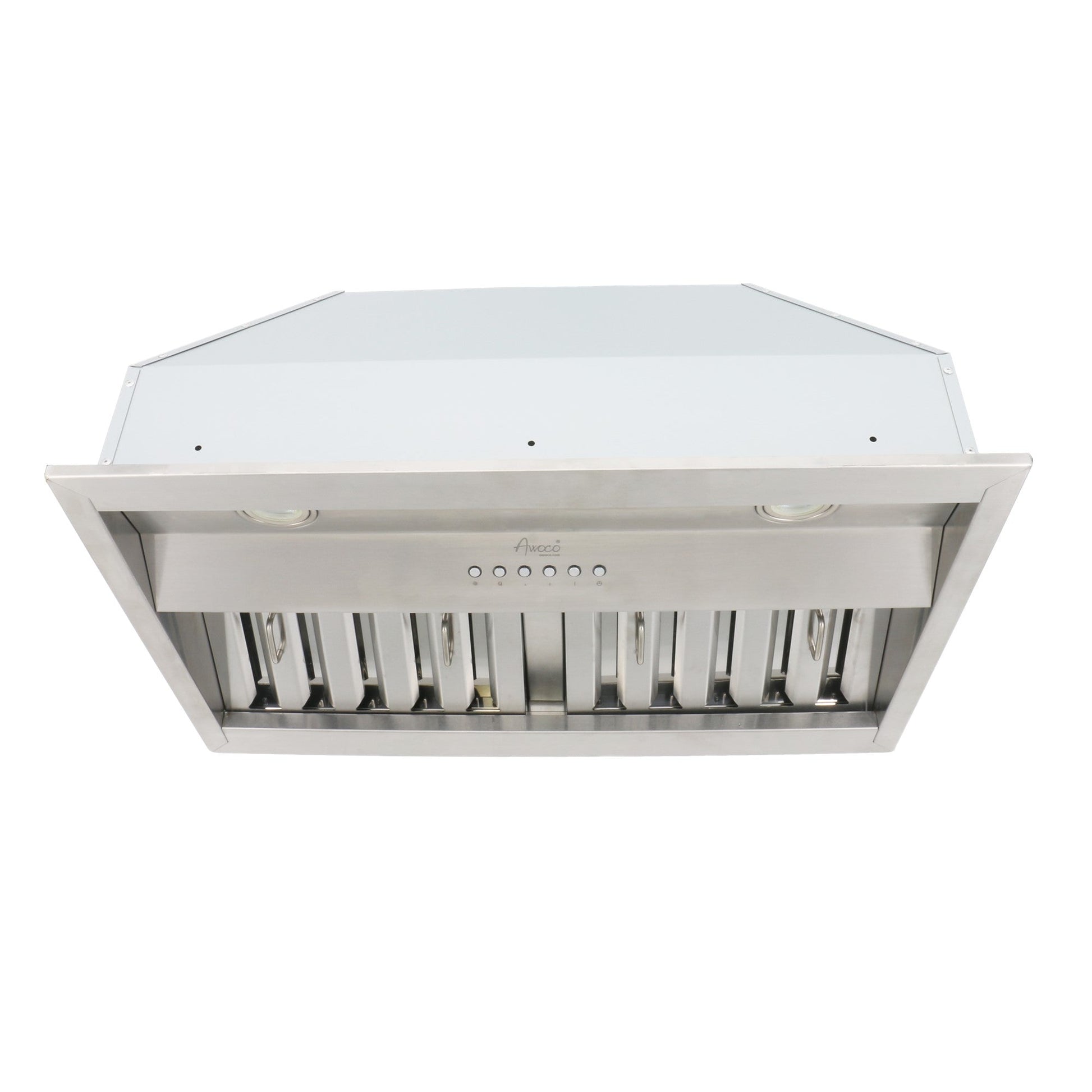

Awoco RH-BQ-X 18.5” Depth Ducted Built-in/Insert Stainless Steel Range Hood, 4-Speed, 700 CFM, LED Lights, Baffle Filters for Wood Hood - RH-BQ-X30

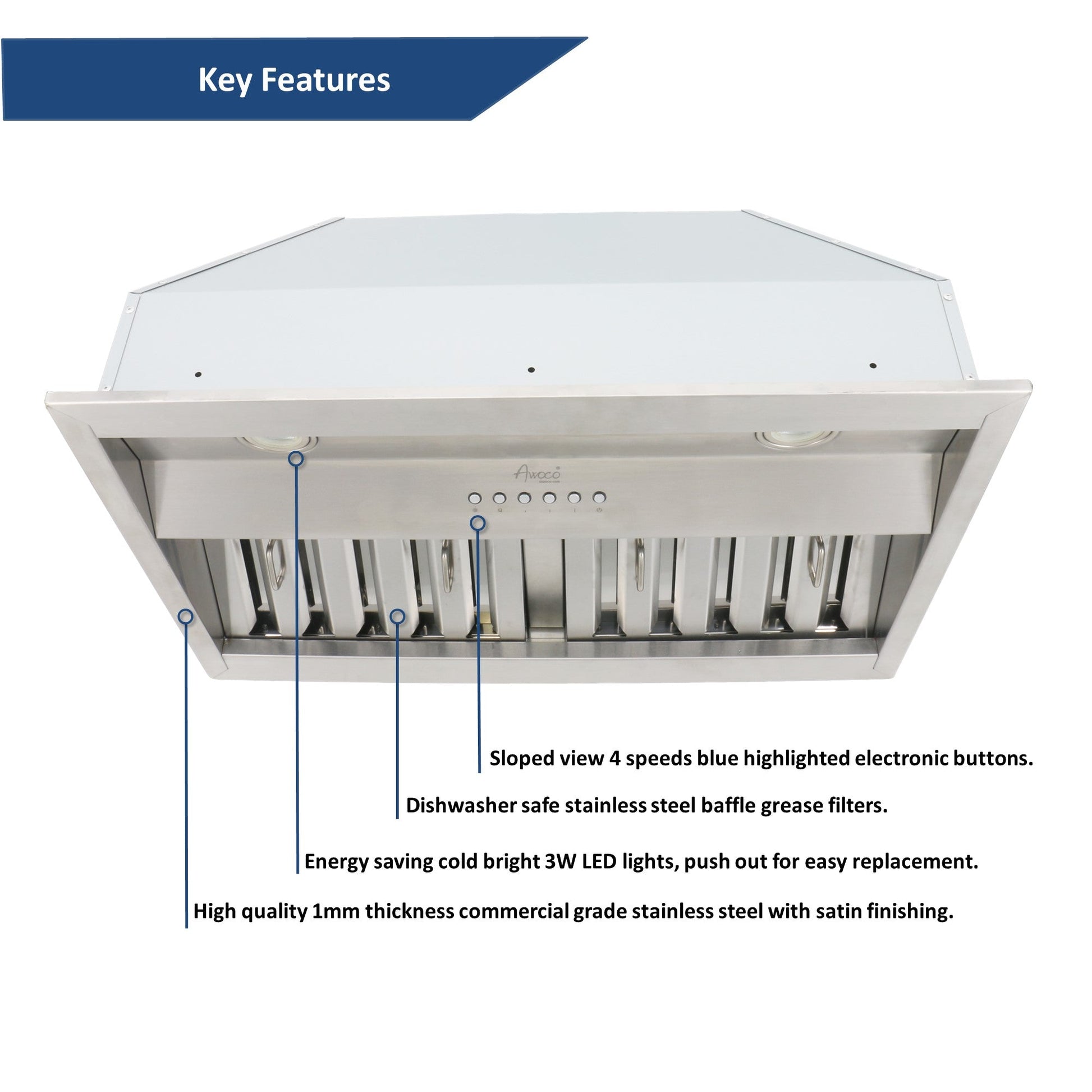

- BUILT-IN INSERT TYPE: Hood insert improves ventilation and lighting over your stove while providing a very strong performance. Built with high quality 1mm thick 18-gauge stainless steel with satin finishing.

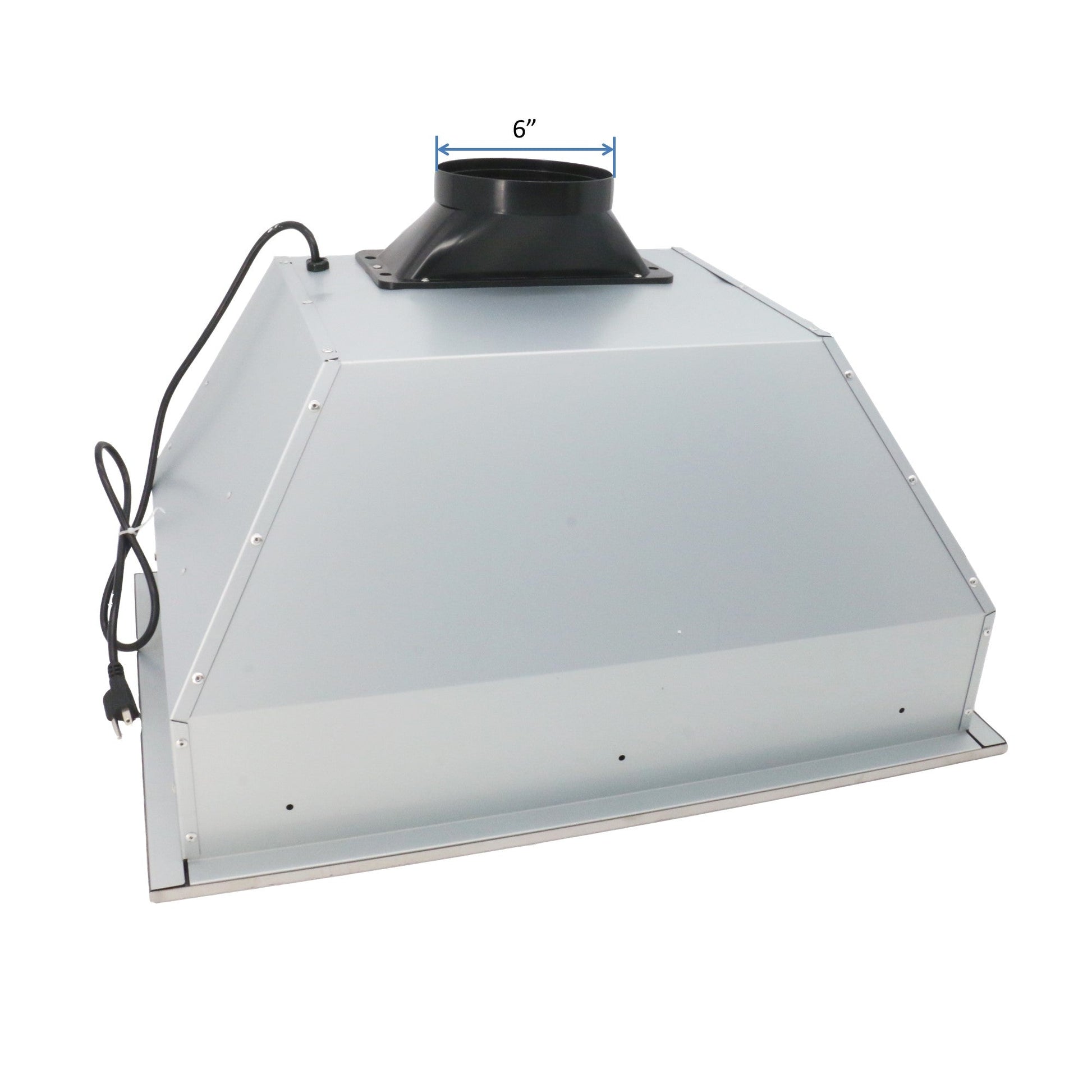

- 6” ROUND TOP VENT: 6” round top exhaust vent. Ducts are not included. This is a ducted model, required vent on wall or roof designed for better performance.

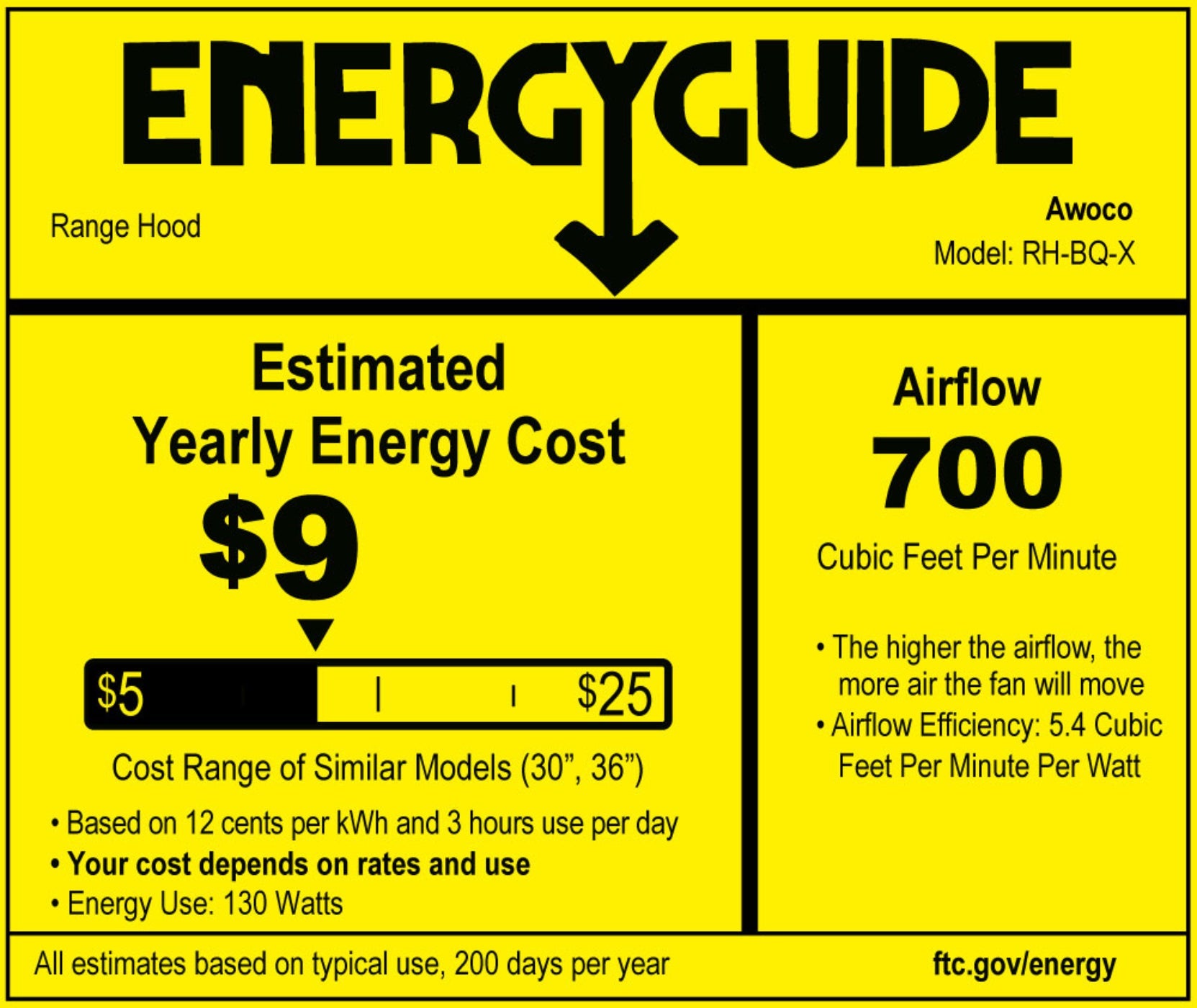

- 4 SPEEDS POWERFUL OPERATION WITH LED LIGHTS: 4 speeds (Q, I, II, III up to 700 CFM), sloped view blue highlighted electronic buttons with 2 3W energy saving cold bright LED lights. Power rating: 120V/60Hz, 130W Max. 42” long power cord with plug is included. Noise level at low: 38 dB, 2.0 sones. Noise level at high: 60 dB, 9.0 sones.
- DISHWASHER SAFE BAFFLE FILTERS: Dishwasher safe commercial style stainless steel baffle air filters. The oil is contained in the baffle filters, no oil holders needed.
-
2 YEARS USA LIMITED PARTS WARRANTY: ETL Certified. Free parts, repair or exchange within 2 years. Awoco high quality product reputation and supreme customer service is a guarantee.

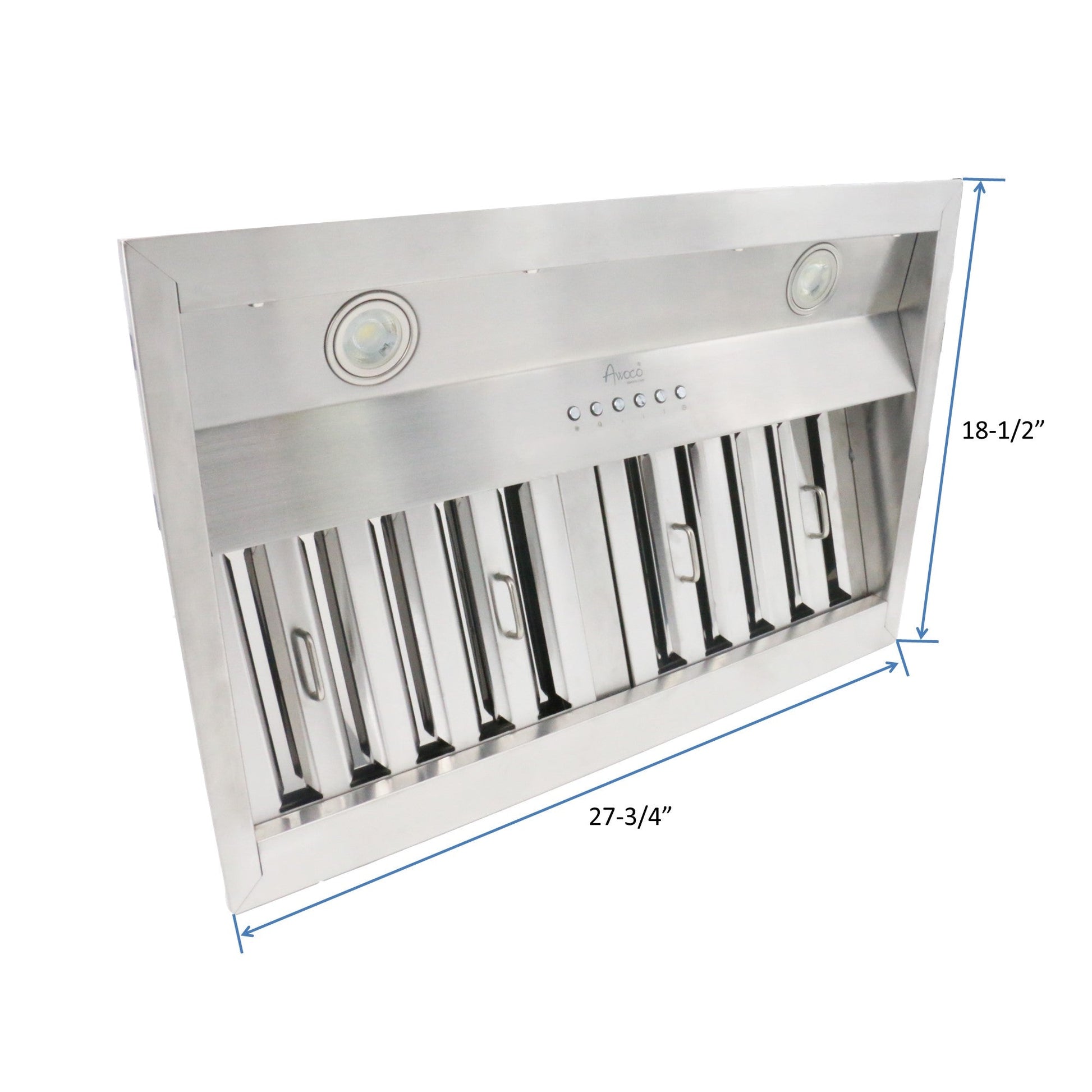

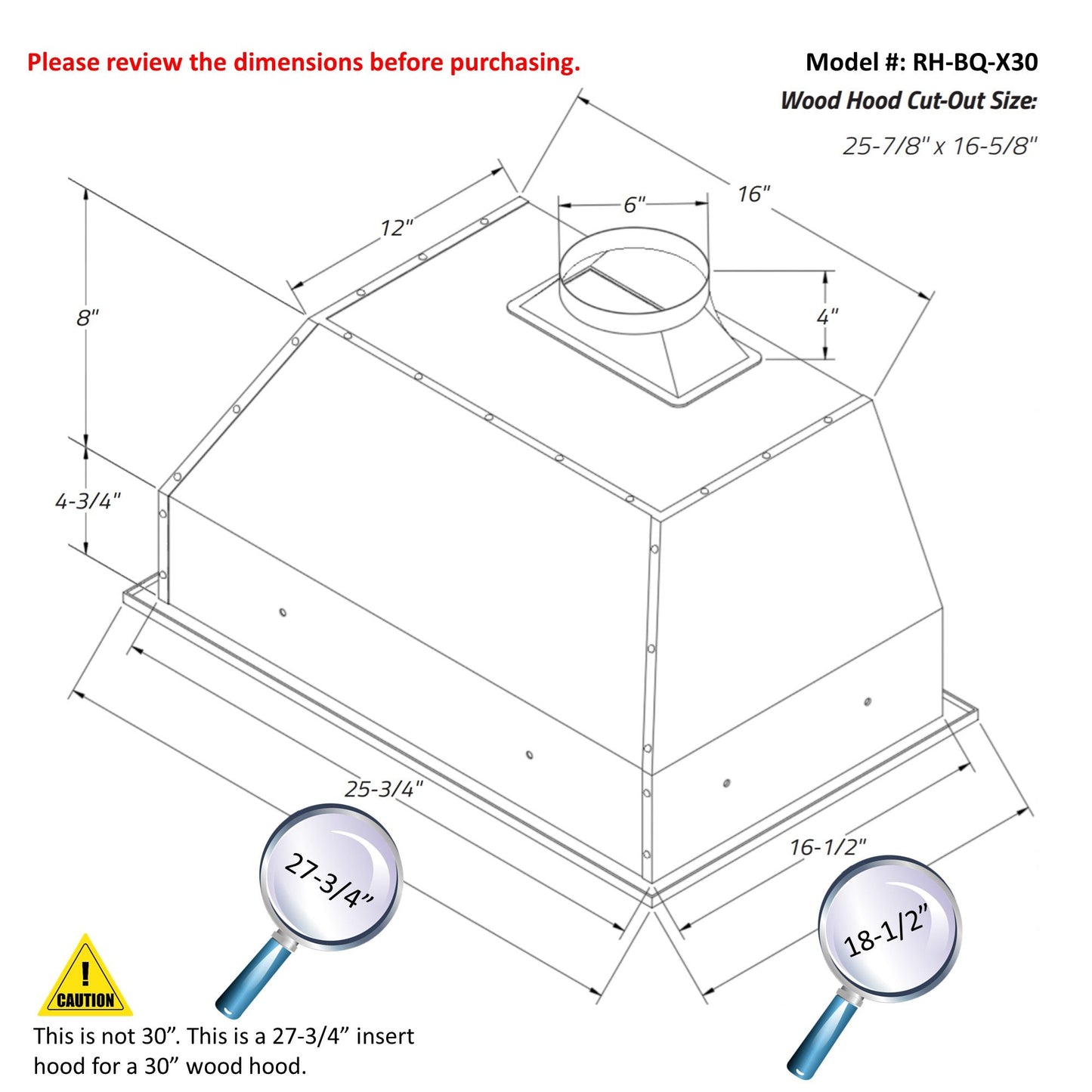

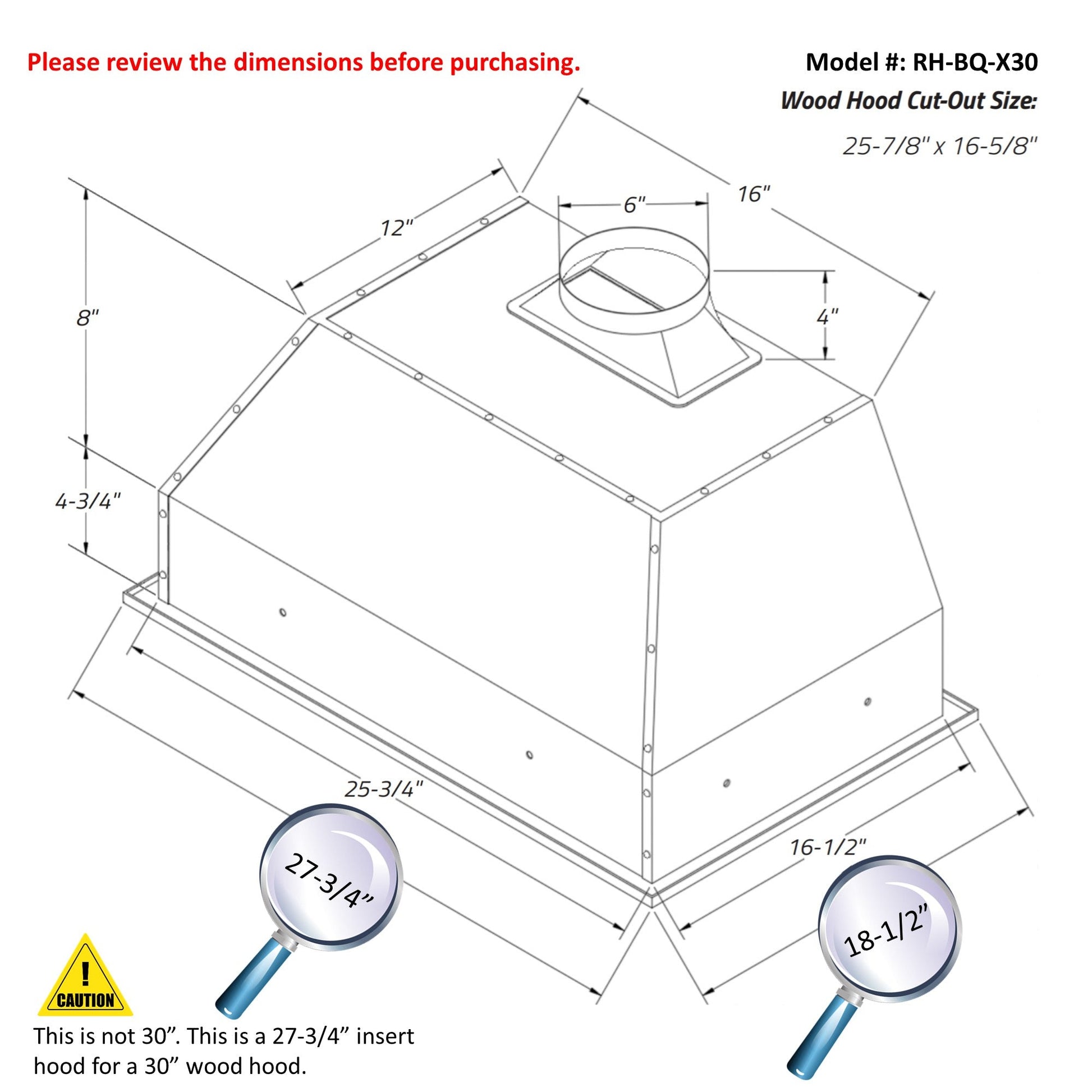

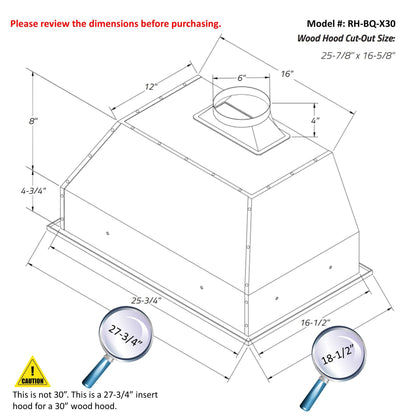

- 30" Hood Dimensions: 27-3/4"W x 18-1/2"D x 17-1/4"H. Hood weight: 37 lbs. Wood hood cut out hole size: 25-7/8" x 16-5/8".
-

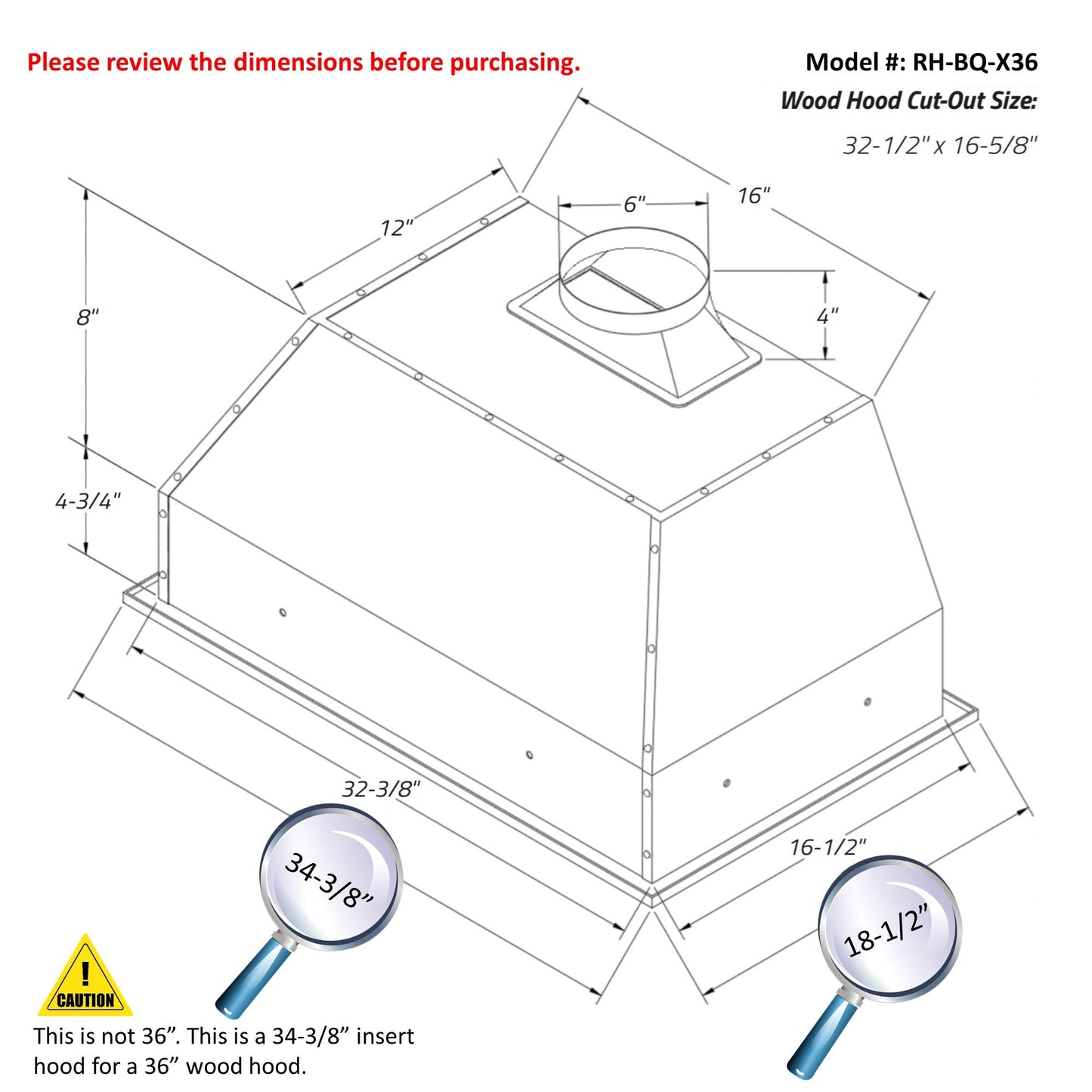

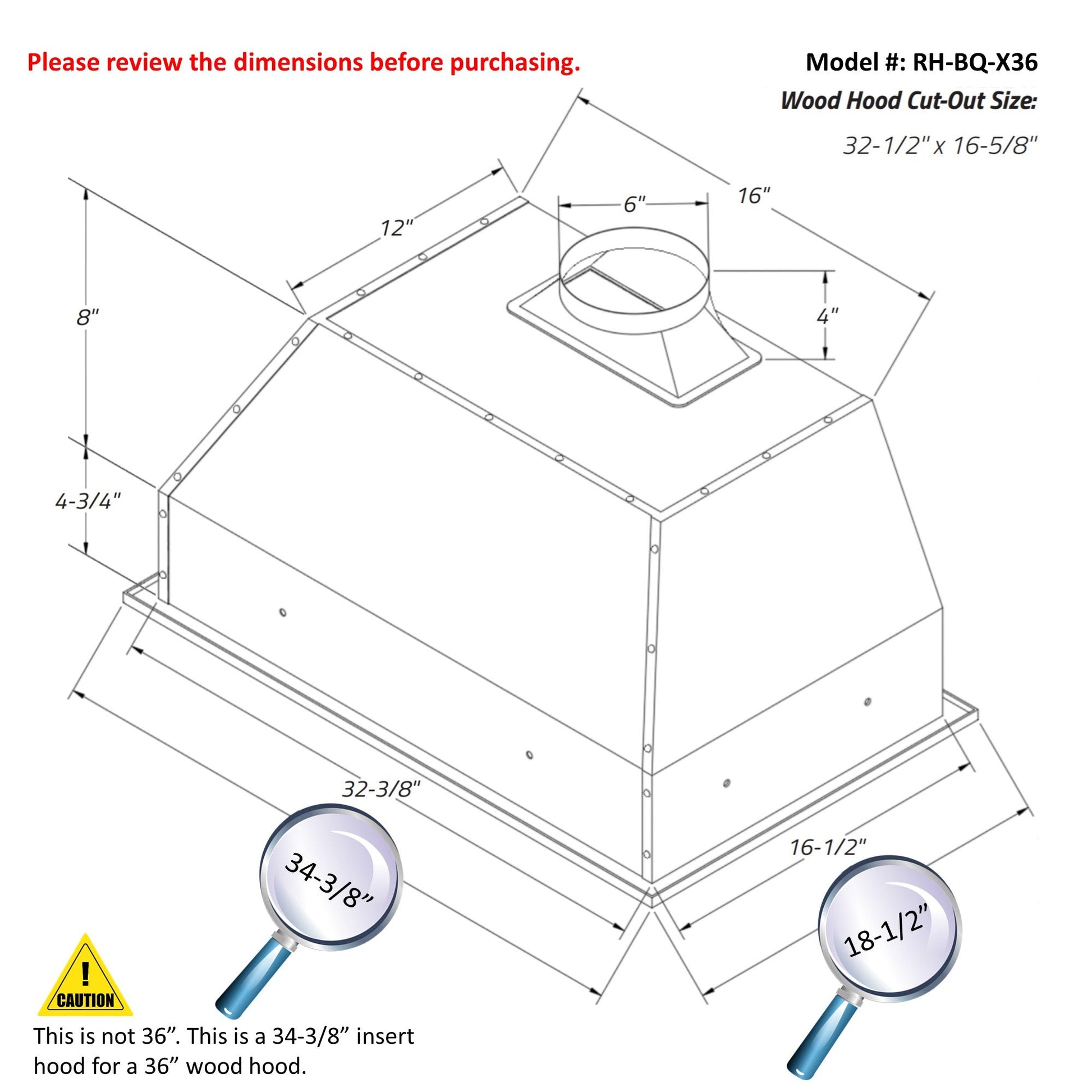

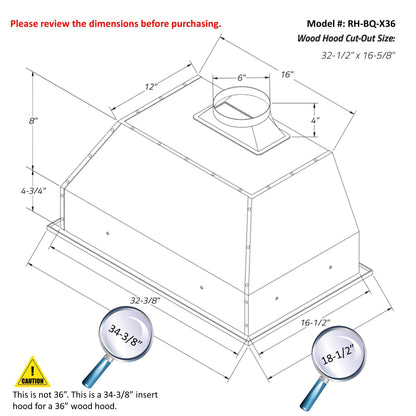

36" Hood Dimensions: 34-3/8"W x 18-1/2"D x 17-1/4"H. Hood weight: 39.5 lbs. Wood hood cut out hole size: 32-1/2" x 16-5/8".
Specifications
| Mounting Type |
Insert Embedded to the Wood Hood. |
|
|
|
|
|
|
| Venting |
6" Round TOP Vent Exhaust. |
|
|
|
|
|
|
| Power Rating |
120V~60Hz, 130W Max. |
|
|
|
|
|
|
| Lighting |
2x 3W LED. |
|
|
|
|
|
|
| Noise Level |
• Low: 38 dB.
• Hight: 60 dB. |
|
|
|
|
|
|
| Model No. |
Width |
Depth |
Height |
# of
Baffle Filters |
Vent Size
("Duct") |
Max CFM |
Wood Hood
Cutout Size |
| RH-BQ-X30 |
27-3/4" |
18-1/2" |
16-3/4" |
2 |
6" Round |
700 |
25-7/8" x 16-5/8" |
| RH-BQ-X36 |
34-3/8" |
3 |
32-1/2" x 16-5/8" |
What Our Experts Think
-
Powerful Ventilation – 700 CFM, 4-speed fan efficiently removes smoke, grease, and odors.
-
Sleek Built-in Design – Perfect for custom wood hoods, seamlessly blends into kitchen aesthetics.
-
Durable Stainless Steel Construction – Resistant to grease and stains, ensuring longevity.
-
Bright LED Lighting – Enhances cooktop visibility with energy-efficient illumination.
-
High-Performance Baffle Filters – Dishwasher-safe for easy maintenance and effective grease trapping.
-
Standard 18.5” Depth – Ensures optimal capture area for better ventilation.
Q&A
Q: What is the Awoco RH-BQ-X30 Range Hood?
A: A 30-inch ducted built-in/insert stainless steel range hood with a 4-speed fan, 700 CFM airflow, LED lights, and baffle filters, designed for wood hood enclosures.
Q: What is the depth of this range hood?
A: It has an 18.5-inch depth for a sleek, built-in installation.
Q: How powerful is the fan?
A: The 4-speed fan delivers up to 700 CFM for effective ventilation and odor removal.
Q: Does it have LED lighting?
A: Yes, it includes bright, energy-efficient LED lights for enhanced cooking visibility.
Q: What type of filters does it use?
A: It comes with durable stainless steel baffle filters that are easy to remove and clean.
Q: Is it compatible with wood hoods?
A: Yes, it's specifically designed for installation within a custom wood hood enclosure.
Q: What size duct does it require?
A: It uses a standard 6-inch round top vent for efficient airflow.
Q: Is installation easy?
A: It’s designed for built-in installation; professional setup is recommended for best performance.
Q: Does it come with a remote control?
A: No, this model does not include a remote control.
Maintenance Tips
-
Clean Filters Regularly – Wash stainless steel baffle filters every 3–4 weeks with warm soapy water or in the dishwasher to prevent grease buildup.
-
Wipe Down Exterior – Use a microfiber cloth and stainless steel cleaner to maintain the finish and prevent stains.
-
Inspect & Clean Blower – Check and clean the blower every 2–3 months to ensure efficient airflow and suction.
-
Check LED Lights – Ensure LED lights function properly; replace with compatible LEDs if dim or flickering.
-
Maintain Venting System – Keep the ducted system clear of obstructions and grease for optimal performance.
-
Use Appropriate Speed Settings – Lower speeds for everyday cooking, higher speeds for heavy smoke and grease.
-
Test Controls – Ensure all speed settings and buttons are responsive; clean if sticky.
-
Run After Cooking – Let the hood run for 5–10 minutes after cooking to clear moisture and lingering odors.
